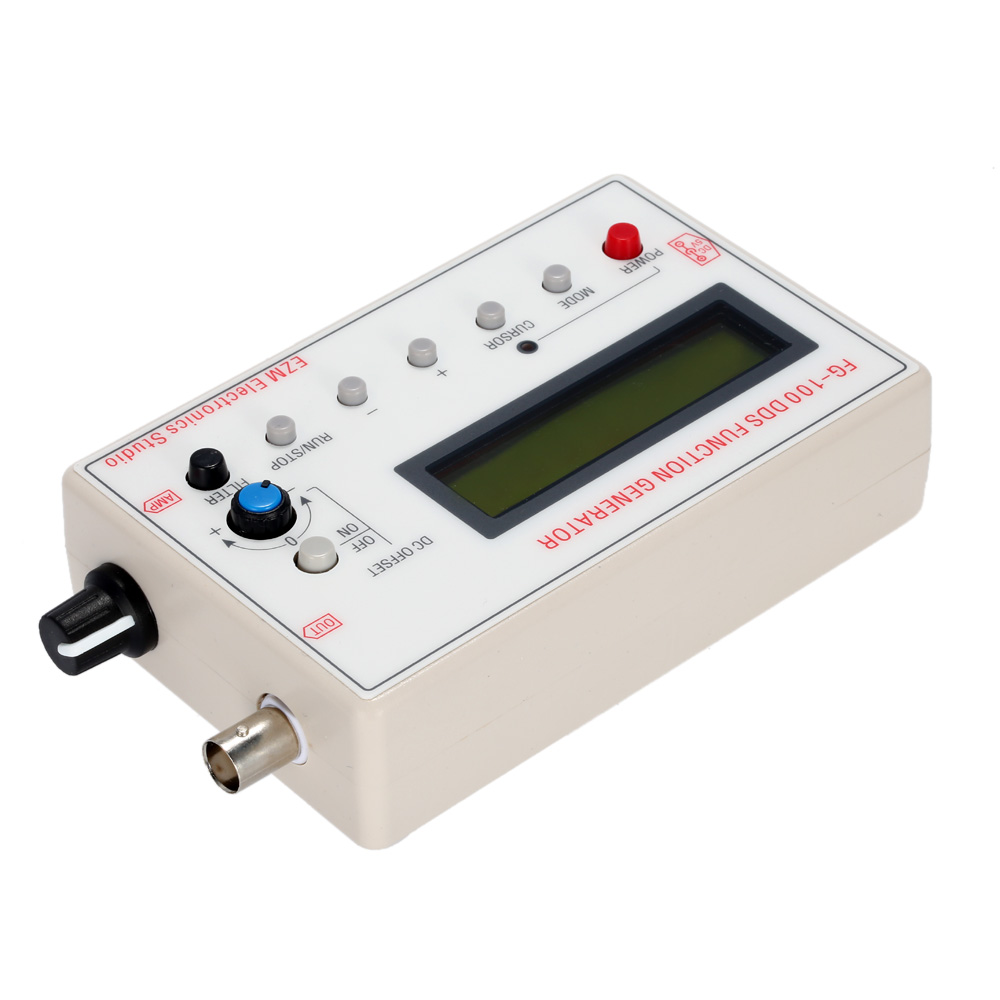

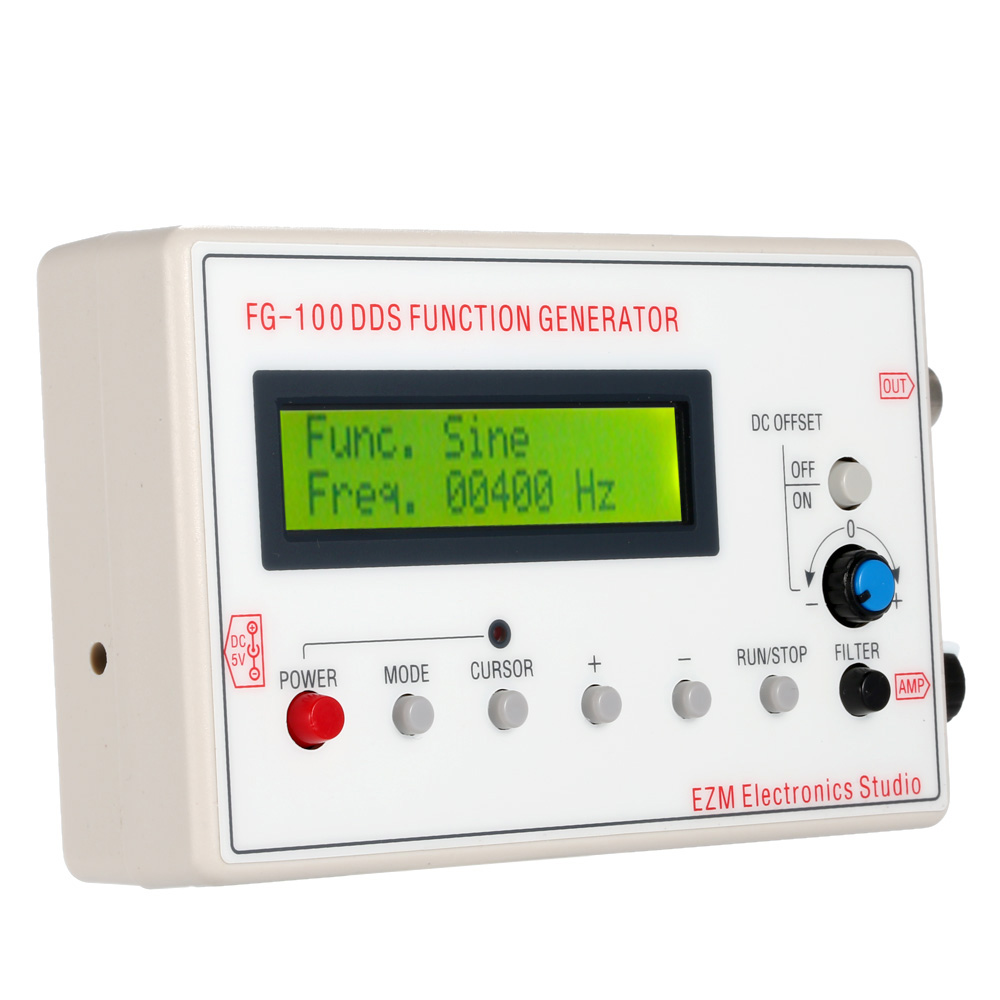

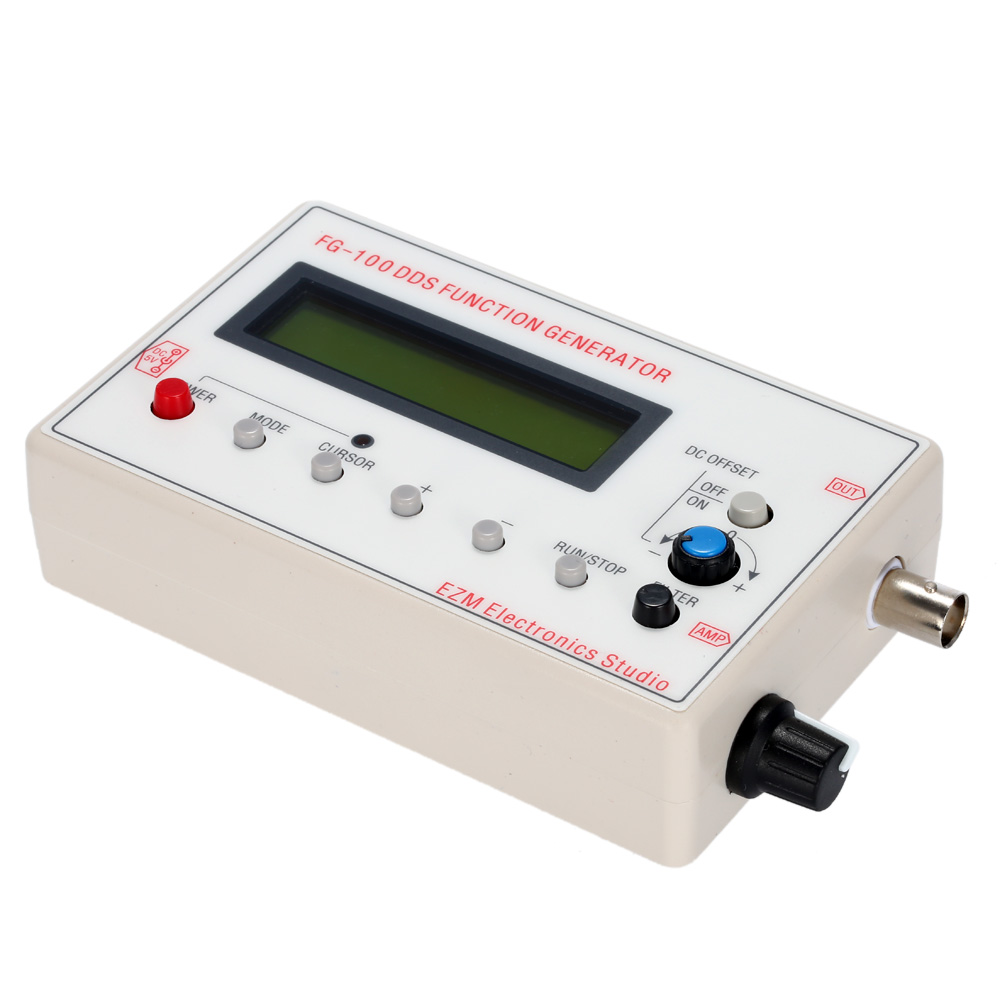

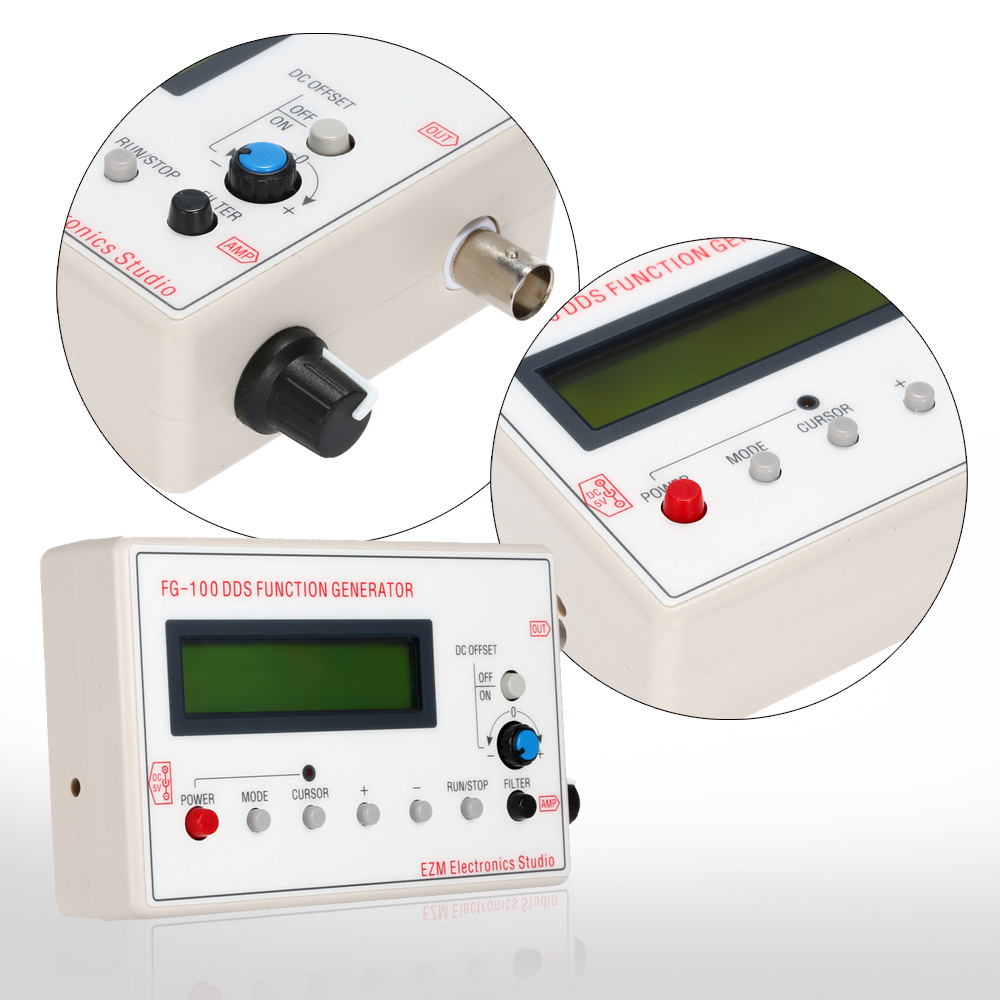

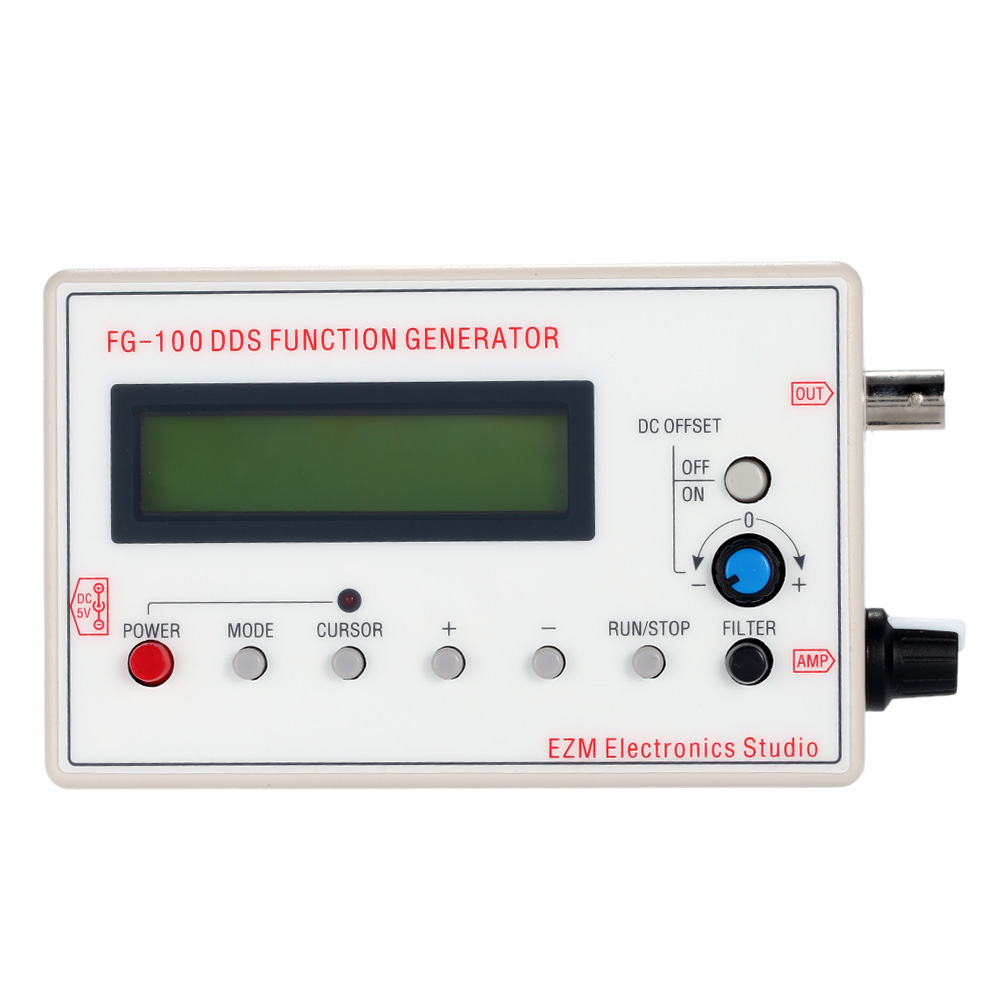

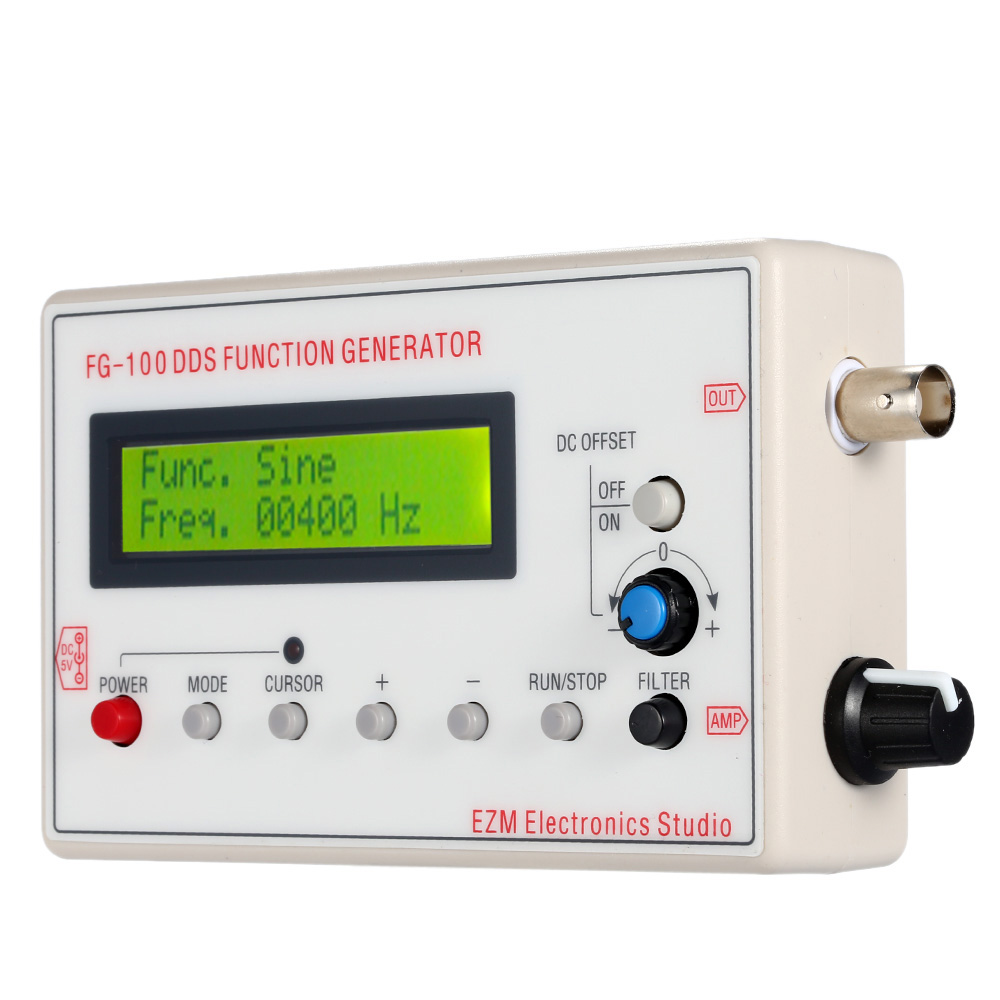

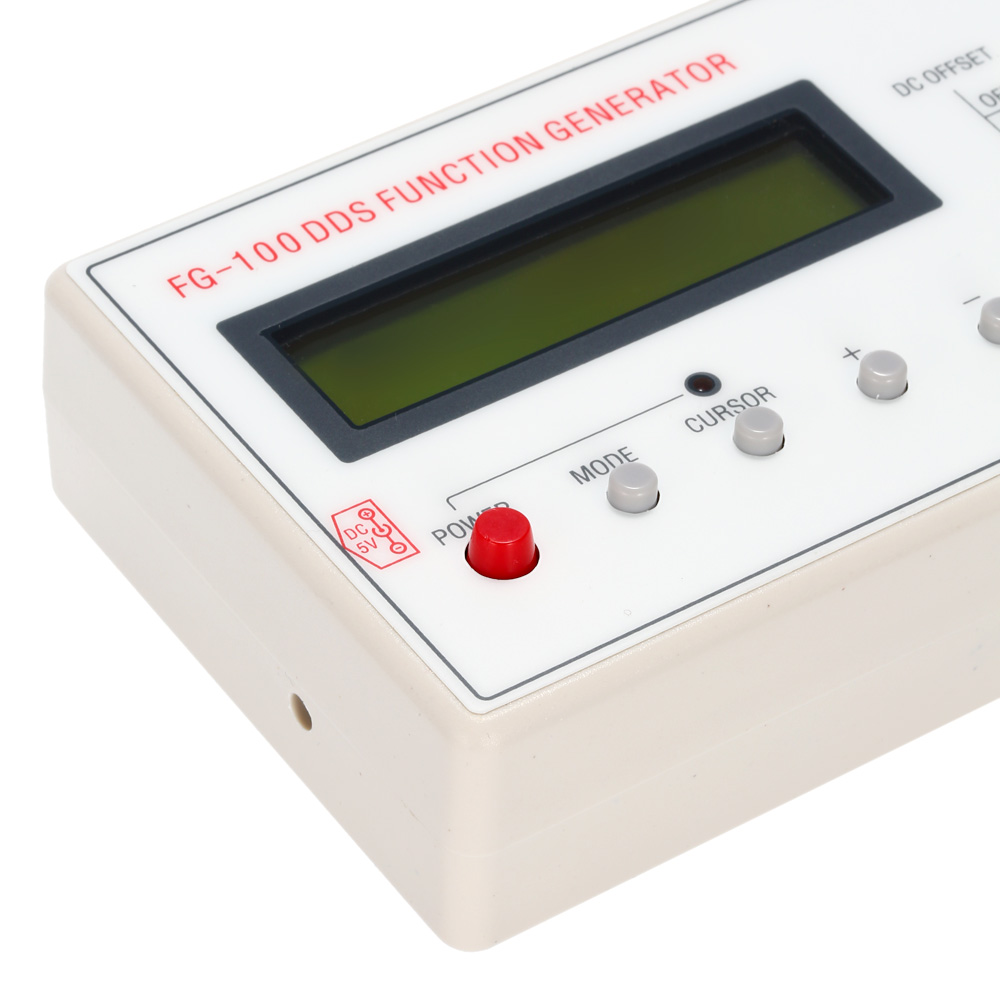

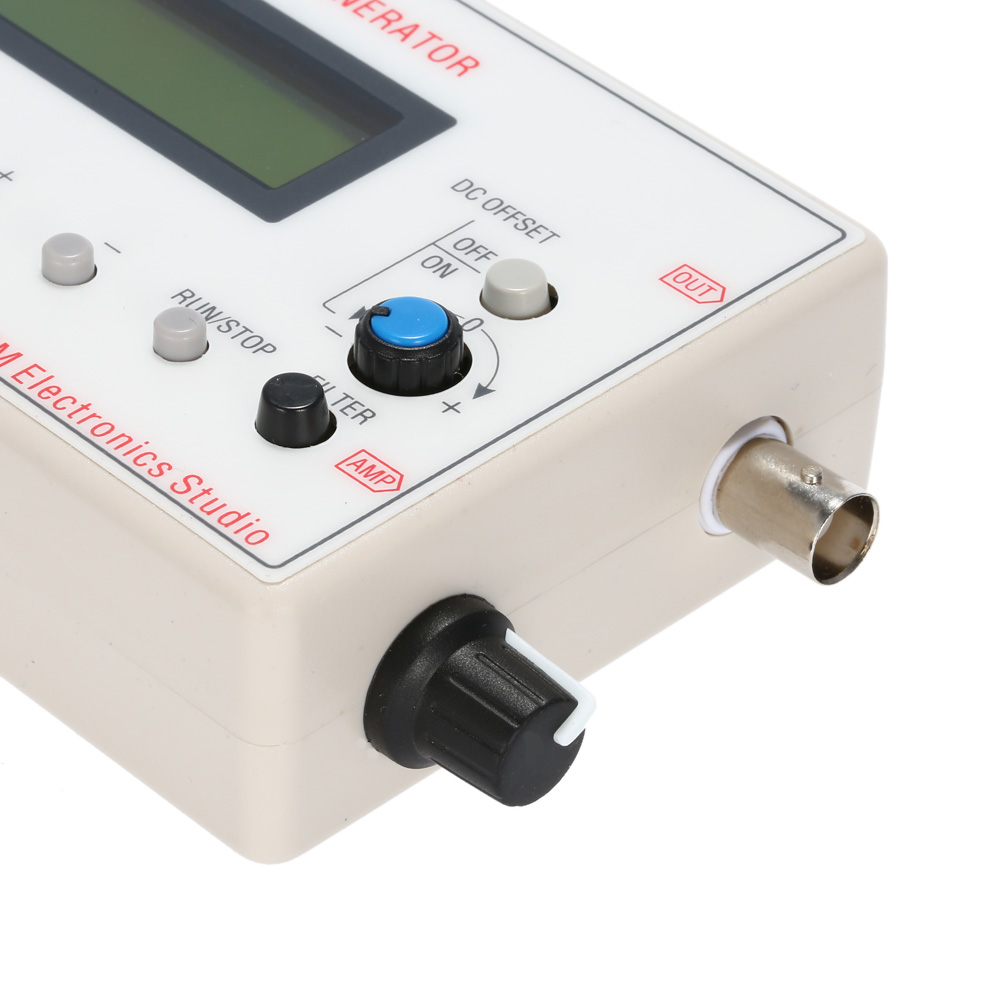

1HZ-500KHZ DDS Functional Signal Generator Precision Frequency Meter Generator Sine + Square + Triangle + Sawtooth Waveform

This functional signal generator can test many kinds of wave forms such as: sine, square, triangle, positive and negative sawtooth waveform. It is especially designed for those professional workers.
Features:
It is small but has many functions, easy to operate and carry.
It can be used with oscilloscope to test and debug electronic circuit, the frequency response of audio amplifier and impulse response.
The square waveform is suitable for oscilloscope attenuator and the adjustment of probe impulse response.
It also can calibrate the sweep time factor of oscilloscope.
Have a filter (can be opened and closed) to suit the output of sine wave and pulse wave.
Specifications:
The Output Signal Types: sine, square, triangle, positive and negative sawtooth waveform.
Frequency Range: sine wave is 1Hz-500kHz, other kinds of waveforms is 1Hz-20kHz.
Resolution: 1Hz
Sine Wave Distortion: under 1kHz < 1%, over 1kHz <0.5%.
DC Offset Range: ±10V (Can be closed)
Output Range: ±10V(P-P)
Output Impedance: 50ohm
Power Supply Voltage: DC3.5-10V.
Display: LCD
Item Size: 14 * 8 * 3.5cm / 5.51 * 3.15 * 1.38in
LCD Screen: 6.5 * 1.5cm / 2.56 * 0.59in
Item Weight: 197.5g / 6.96oz
Package Size: 23 * 16 * 3.5cm / 9.06 * 6.3 * 1.38in
Package Weight: 202.5g / 7.15oz
Package List:
1 * Signal Generator

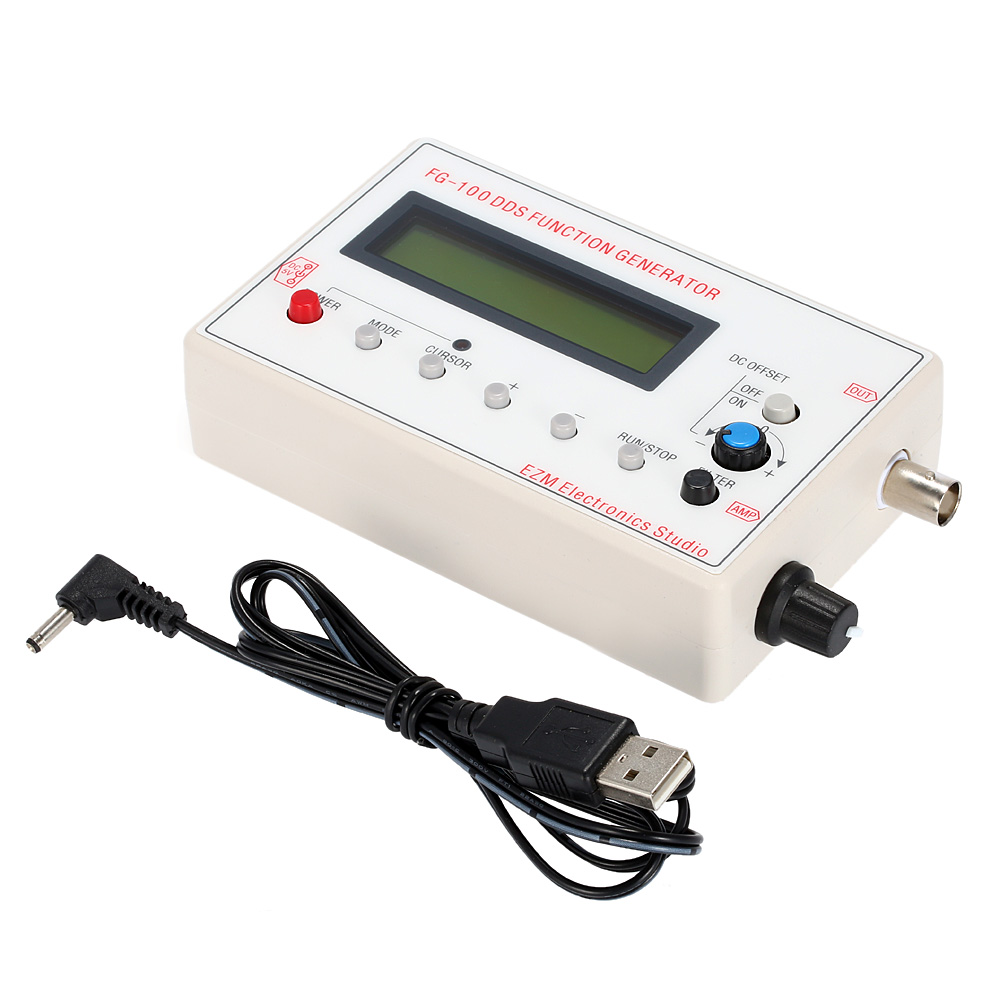

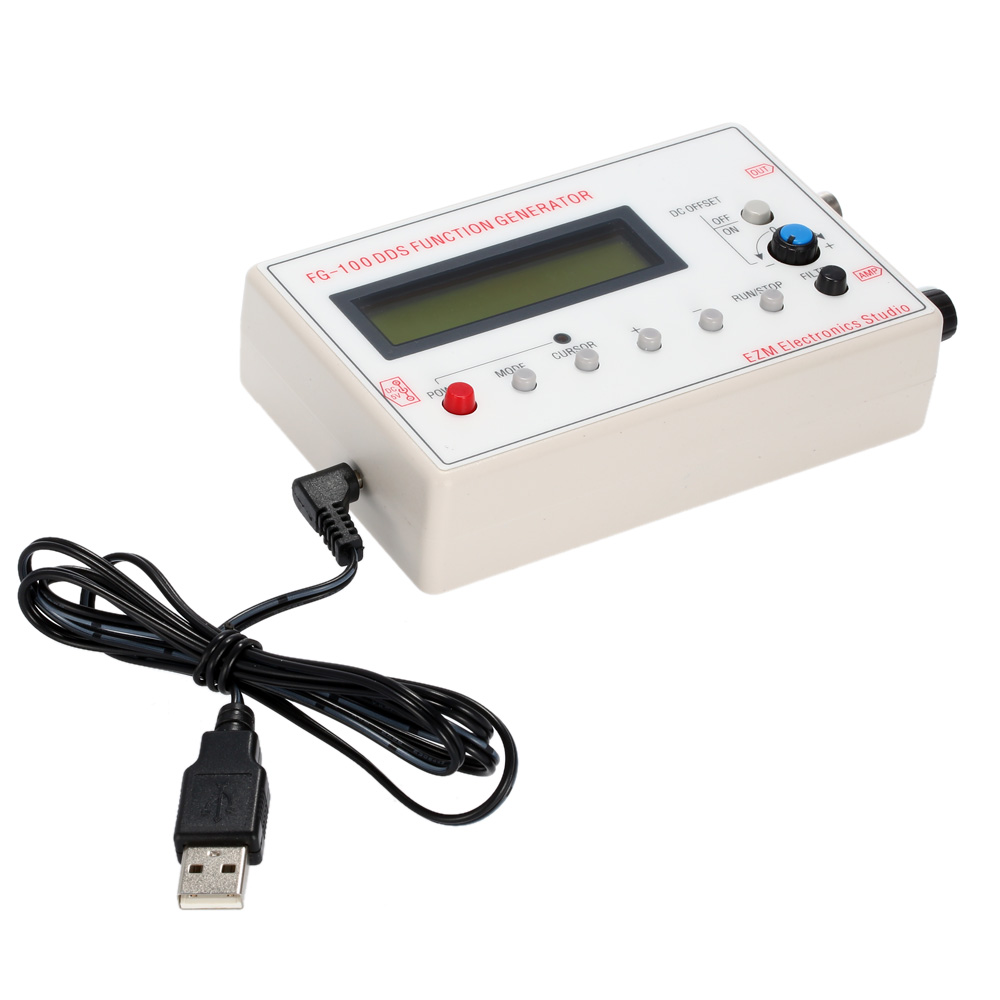

1 * USB to DC Power Cable
