2 megapxiel FULL hd SONY CMOS 20X optical zoom Outdoor CCTV PTZ IR network Camera Auto Tracking

SKU:

CK10351

Category: Dome Camera

$439.00

Enquiry

Footer Group

Description

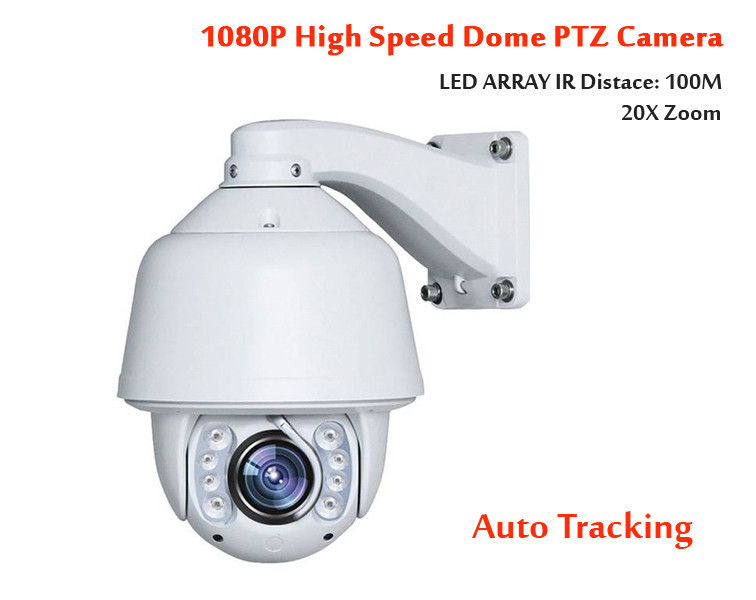

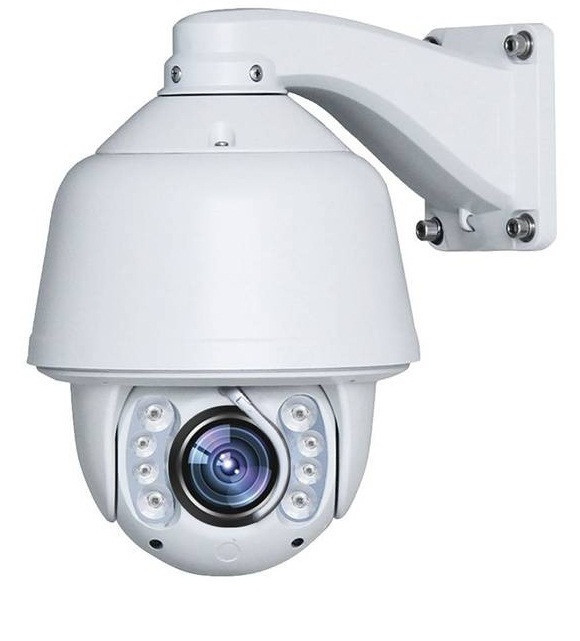

Auto Motion Tracking PTZ IP Camera outdoor 2MP full HD 1920*1080P High speed dome camera 20x Zooms cctv camera

Specifications

1080P 2MP IP IR PTZ Camera

1. 20X zoom
2. 150m IR range
3. WDR/ DNR(2D&3D)
4. 1/2.7" CMOS

Feature

High Quality 2 megapixel 20x Speed Dome Panasonic outdoor security cam

1/2.7\\\'\\\'Exmor CMOS Sensor ,WDR,DNR(2D &3D)
20x zoom, 12digital zoom
2MP high resolution

150m IR Range,IP66 Rating

Specification

Model	6116-IR-Z
Image Sensor	1/2.7" Exmor CMOS
Effective Pixels	1920(H)x1080(V)
Minimum Illumination	Color: 0.5Lux F1.6, B/W: 0.02Lux F1.6
White Balance	Auto / Manual / One Touch WB / ATW
Min. Illumination	Color: 0.05Lux (F1.6, AGC ON), B/W: 0.005Lux (F1.6, AGC On); 0 Lux with IR
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
S/N Ratio	>50dB
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Shutter Speed	50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Focus Mode	Auto/Semiautomatic/Manual
Enhancement	Smart Defog: on/off
Focal Length	4.7 ~ 94mm, 20x
Zoom Speed	Approx 2.7s(Optical Wide-Tele)
Angle of View	58.3 ~ 3.2 degree (Wide-Tele)
Min. Working Distance	10 ~ 1,500mm (Wide-Tele)
Aperture Range	F1.6 ~ F3.5
IR Distance	150M
Day& Night	ICR
Auto Focus	Auto / Semi-automatic / Manual
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Frame Rate	50Hz:25fps( 1920×1080P),25fps((1280×720P) 60Hz:30fps( 1920×1080P),30fps((1280×720P)
Image Compression	H.264

Protocols	TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, RTSP, PPPoE, SMTP, NTP (FTP, SNMP optional)
No. of Users	Up to 6 user
Dual Stream	Support
User/Host Level	3 Levels: Administrator, Camera control, Live view online
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 10
Streams	Three Streams

User/Host Level	Up to 32 users, 3 Levels: Administrator, Camera control, Live view only
Application programming	Open-ended API, support Onvif, PSIA and CGI
Camera Control	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Client software	Support iVMS-4200 PCNVR
Web Browser	IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+, support multi-language

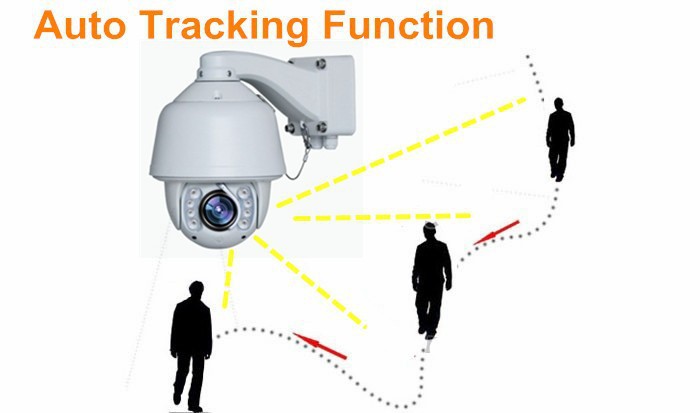

Auto tracking	support
Security Measures	User authentication (ID and PW), host authentication (MAC address)

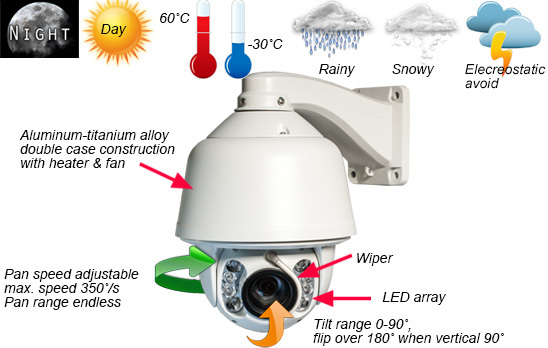

Pan Range	360° endless
Pan Speed	High Speed: 0.01° ~ 200° /s Low Speed: 0.01° ~ 35° /s
Tilt Range	-5° ~ 92° (auto flip )
Tilt Speed	High Speed: 0.01° ~ 120° /s Low Speed: 0.01° ~ 35° /s
Pan preset speed	High Speed: 250° /s Low Speed: 35° /s
Number of Preset	255
Pattern	4 patterns, with the recording time not less than 10 min per pattern
3D Position	Yes
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Working Temperature/ Humidity	-40°C ~ 75°C (-22° F ~ 149° F), 90% or less
Protection Level	IP66 with TVS 4000V lightning protection, surge protection and voltage transient protection
Power Supply	DC12V±10% (AC24V±10% optional)
Power Consumption	40W MAX
Color / Material	White / Aluminum
Net Weight(approx.)	8.0Kg (8.8Ibs)
