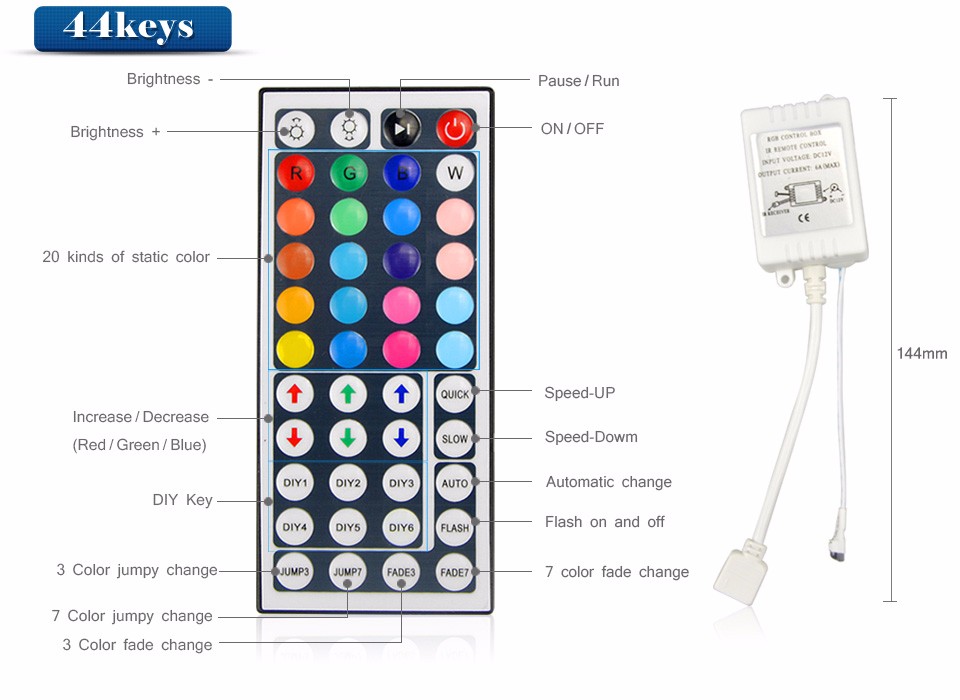

2.4G RGBW RGB LED Controller Touch Screen RF Remote Control / DC12V 24key /44 key RGB IR Controller for LED 2835 3528 5630Strip.

<<prev

2.4G RGBW RGB LED Controller Touch Screen RF Remote Control / DC12V 24key /44 key RGB IR Controller for LED 2835 3528 5630Strip.

SKU:

121718001

Category: Controller and Connectors

$1.50

$1.30 - $1.50

Enquiry

Footer Group

Description

Product Overview:

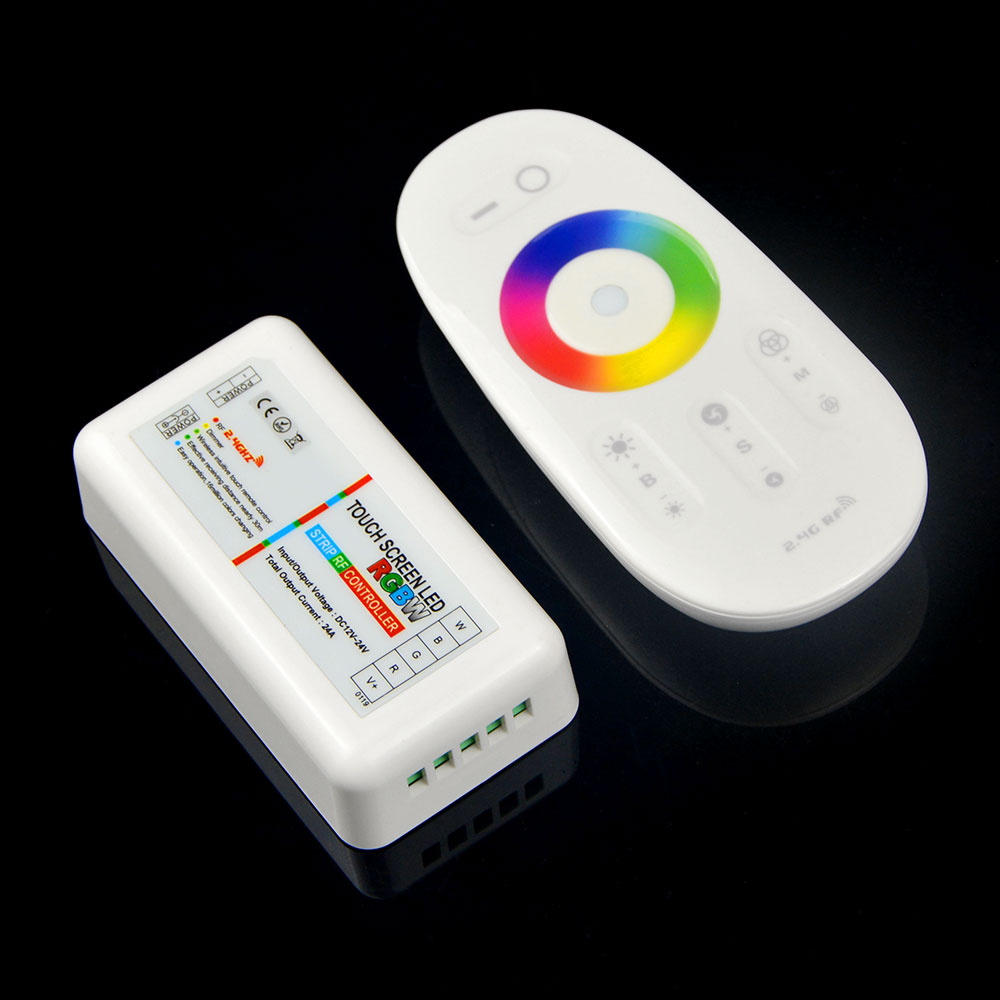

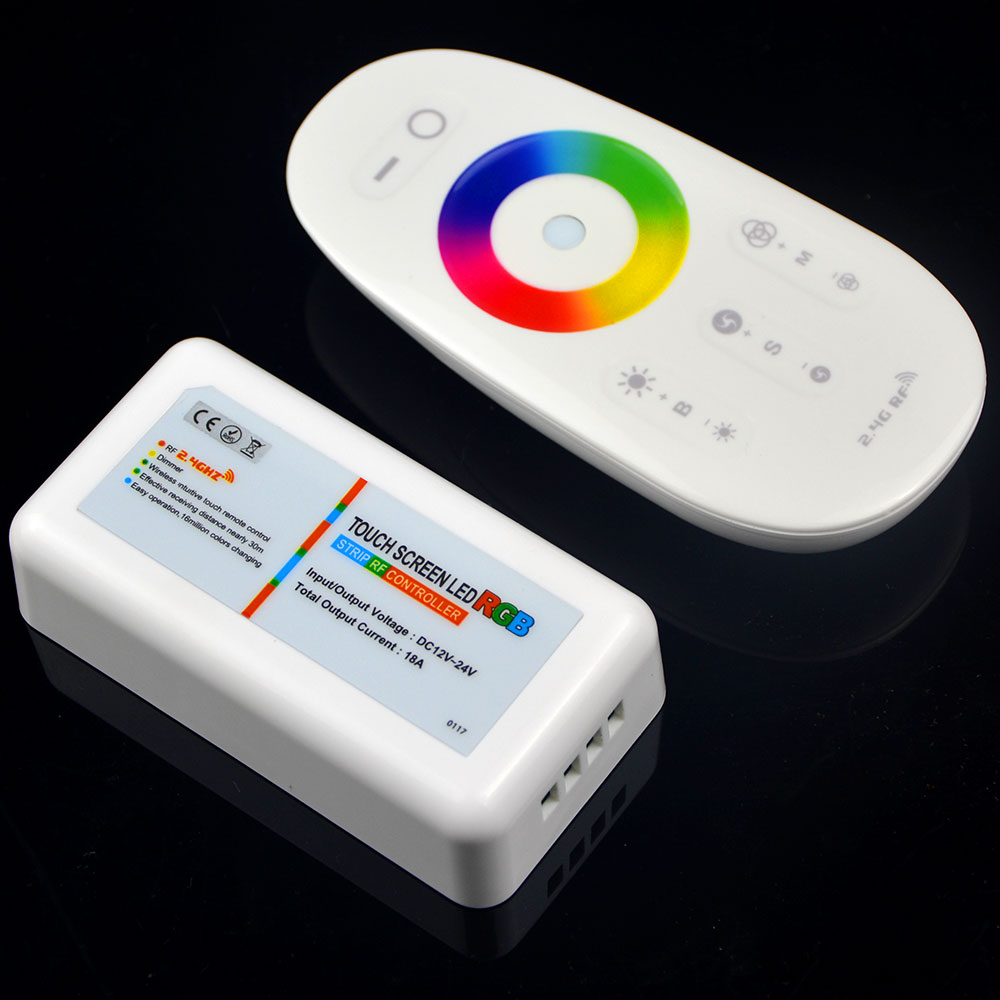

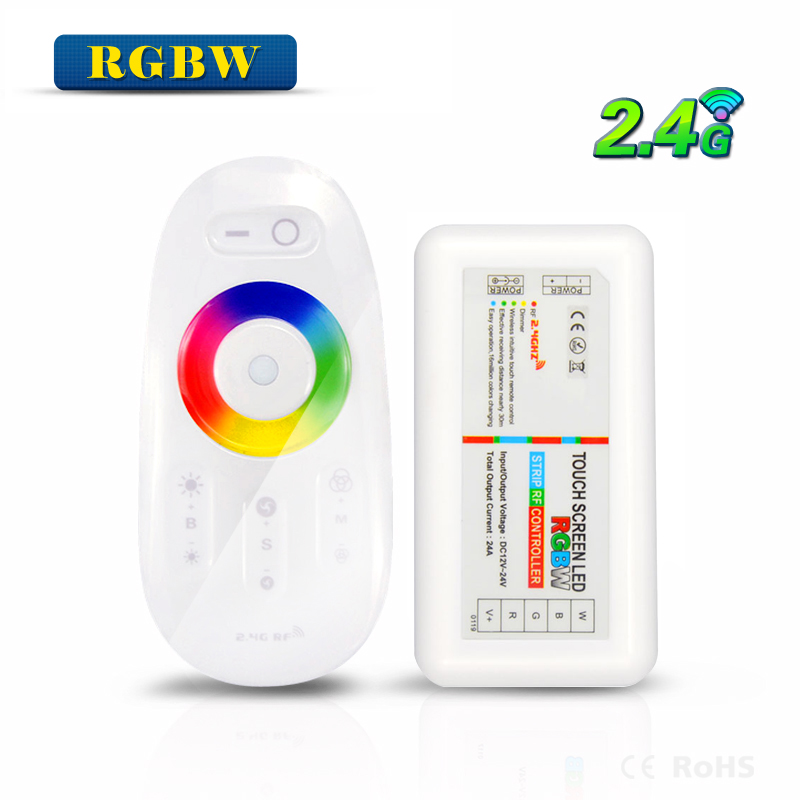

This item is a high-performance RGB RGBW/WW led touch remote controller, adopting the most advanced PMW control technology, controlling all RGBW led products with five lines and three circuits(common anode), owning 640 thousand colors and 20 automatical changing modes to choose.

Also, it has the momory function(that is to say, the previous settings will be resumed when power on again). It is widely used in led RGB strip light,led module and so on.

With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunication, etc.

The remote looks fashionable and elegent, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.

The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.

Specifications:

2.4G RF Remote Control

1. Size: 110*52*20mm

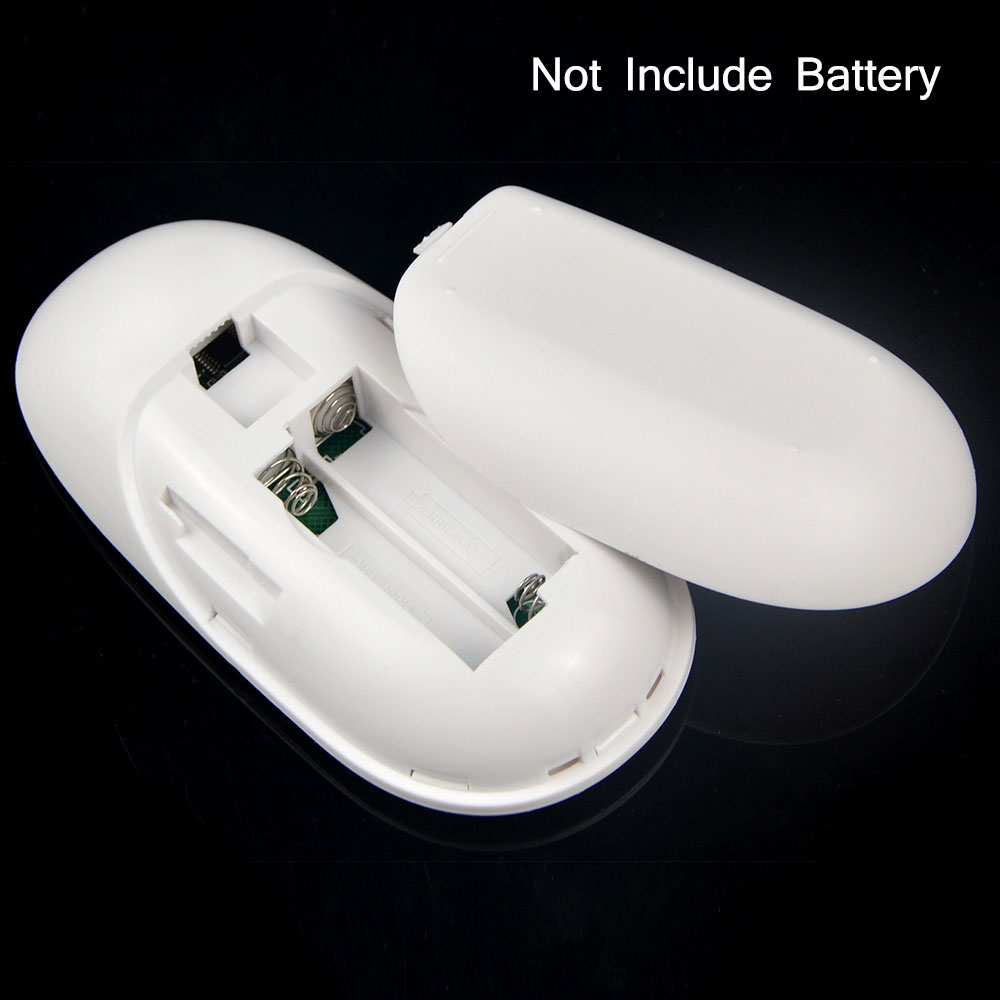

2. Power: AAA battery*2pcs

3. Material:ABS

4. Fabrication: Multicolor printing & UV varnish

RGB LED Controller

1. Size: 85*45*23mm

2. Working voltage: DC12-24V

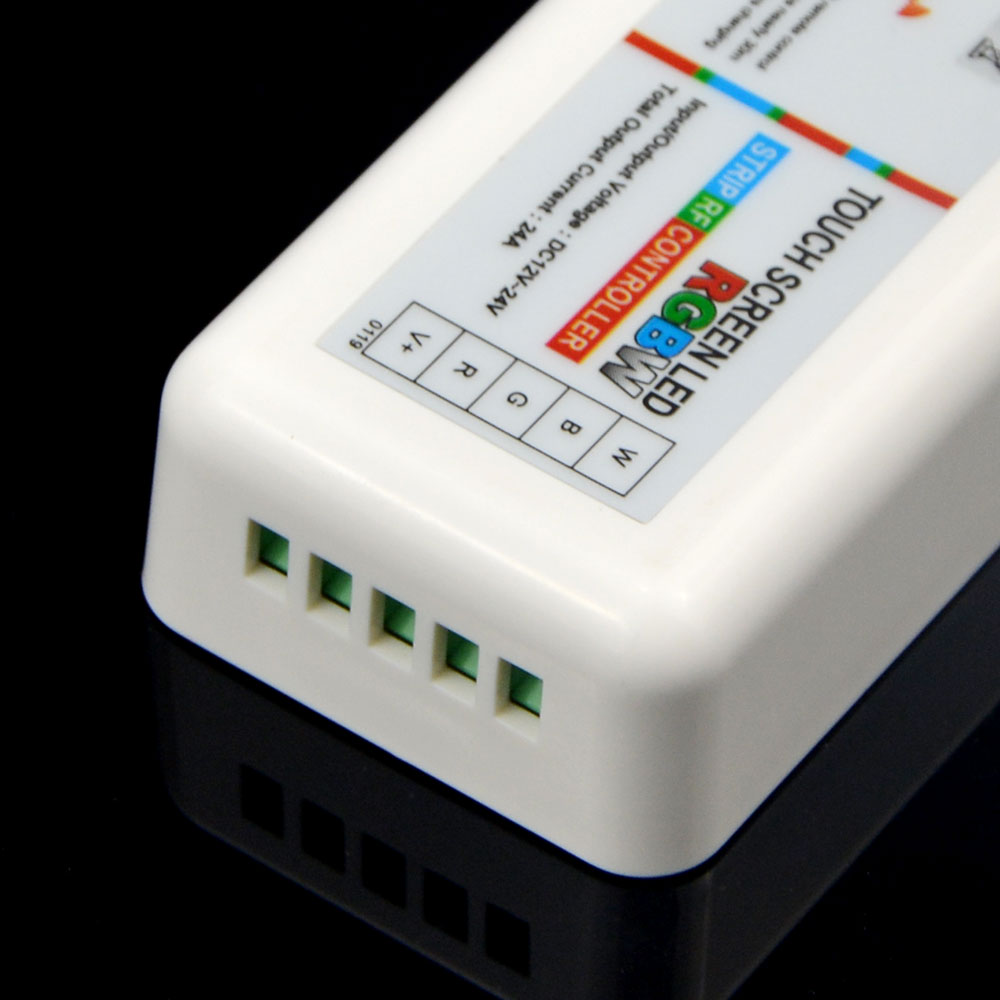

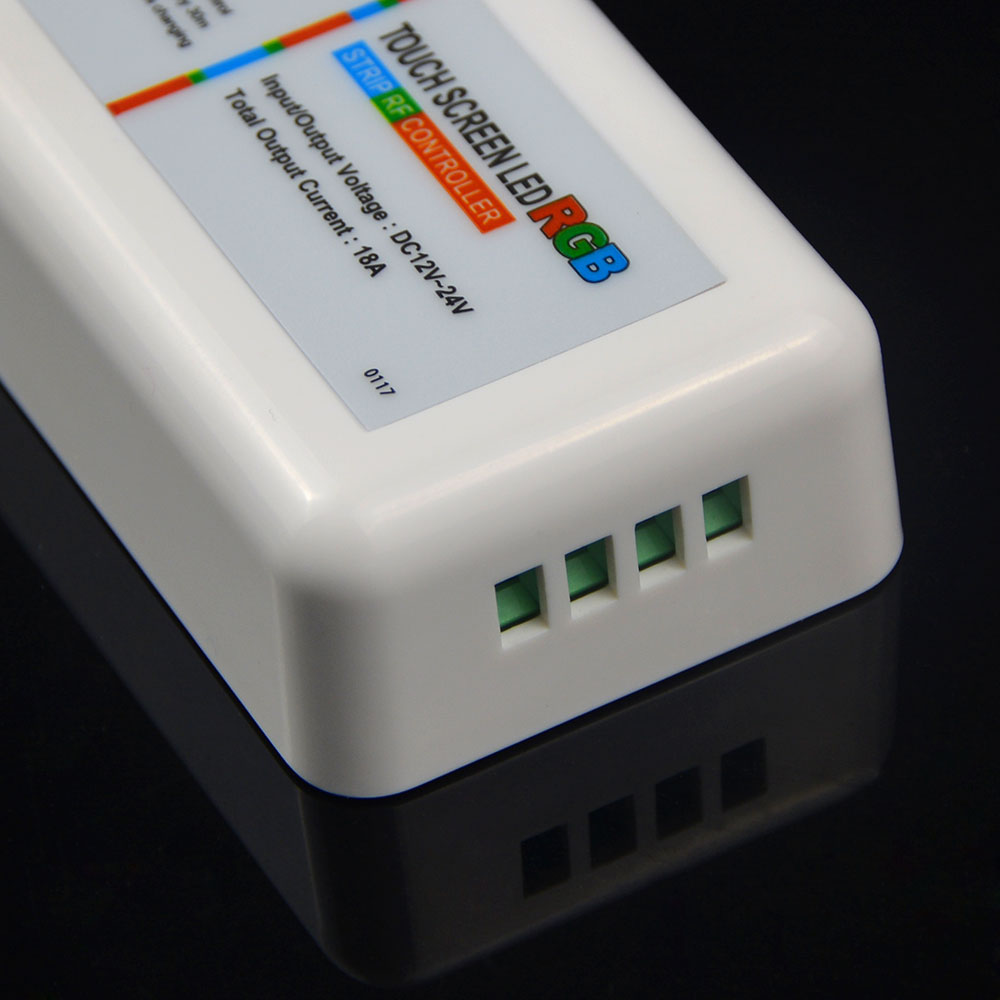

3. Control Way: R G B W Four channels / R G B Four channels

4. Max load per channer:6A

5. Output connection: Common anode

6. Telecontrol distance: 30 meters

7. Programs: 20 kinds

Attention:

1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.

2. Please don\'t connect wires with power on. Please switch on again only when it is in right connection and no short circuit.

3. Please keep your finger off the touch ring when installing the batteries, to improve its sensitivity, and use the remote (3 seconds later) after the batteries are installed. Please reinstall the batteries, if the touch ring is found low-sensitivity.

4. Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.

Application:

1. The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it

2. The 4wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur

3. Connect the wires of the controller and LED fittings as per the instruction

4. Don’t peel off the label on the controller in case any indication information will be missed.

5. The standard warranty is one yeas Our company won’t be responsible for any damage of the Controller due to any wrong operation.

Package included:

1 x LED RGB/RGBW Controller

1 x 2.4G RF Remote Control( Not included battery) 2.4G RGBW RGB LED Controller Touch Screen RF Remote Control DC12V 24key 44 key RGB IR Controller for LED 2835 3528 5630Strip.
