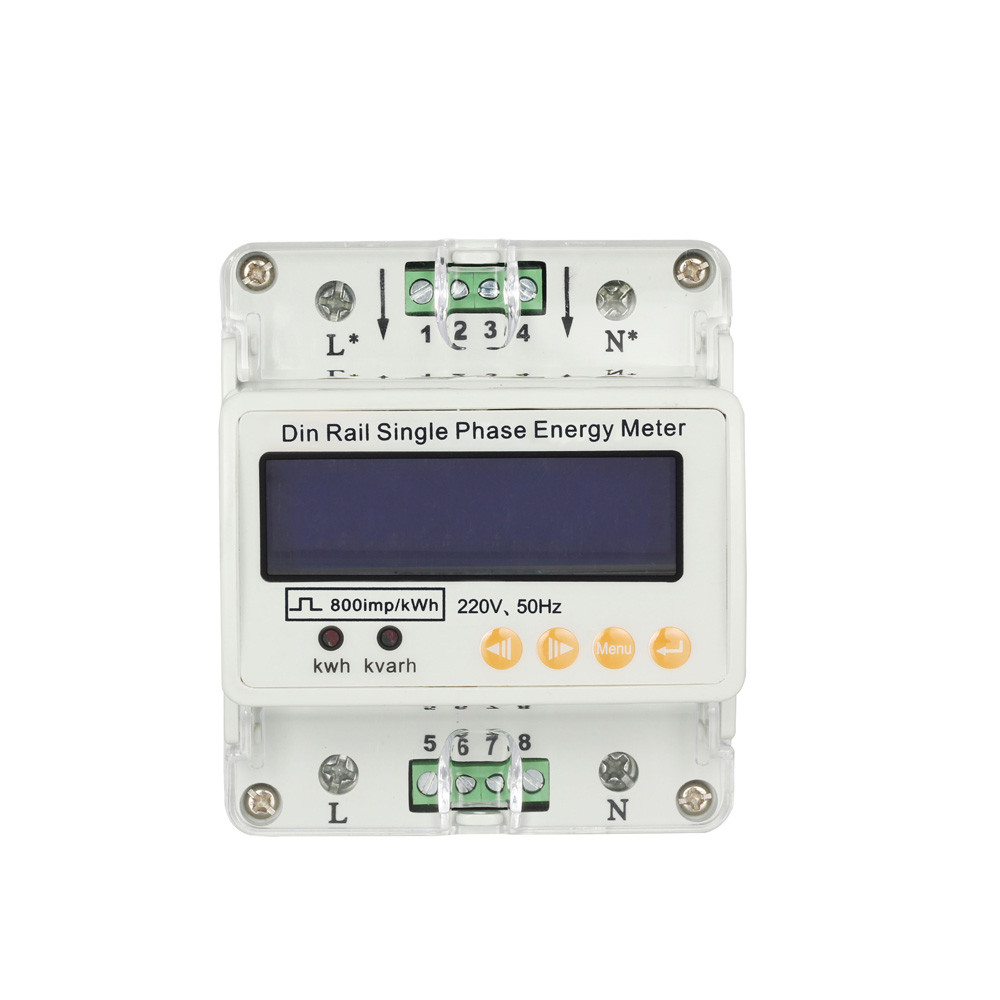

LCD Din Rail Single Phase Power Meter Electricity Energy Meter 50/60Hz Current/Voltage Watt Meter Din-rail Kilowatt Hour Tester

The energy meter has advantages of small size, high precision, good EMC, easy installation, etc. It meets the related requirement of electronic power meter in the GB/T17215, GB/T17883 and DL/T614 standards. It's widely used in building, shopping mall, exhibition center, schools, airports, ports and factories, etc.
Features:
Small size, high precision, good EMC, easy installation.
Single phase four quadrant energy measurement, active/reactive power pulse output.
The current and voltage can be adjustable, frequency is 50/60Hz.

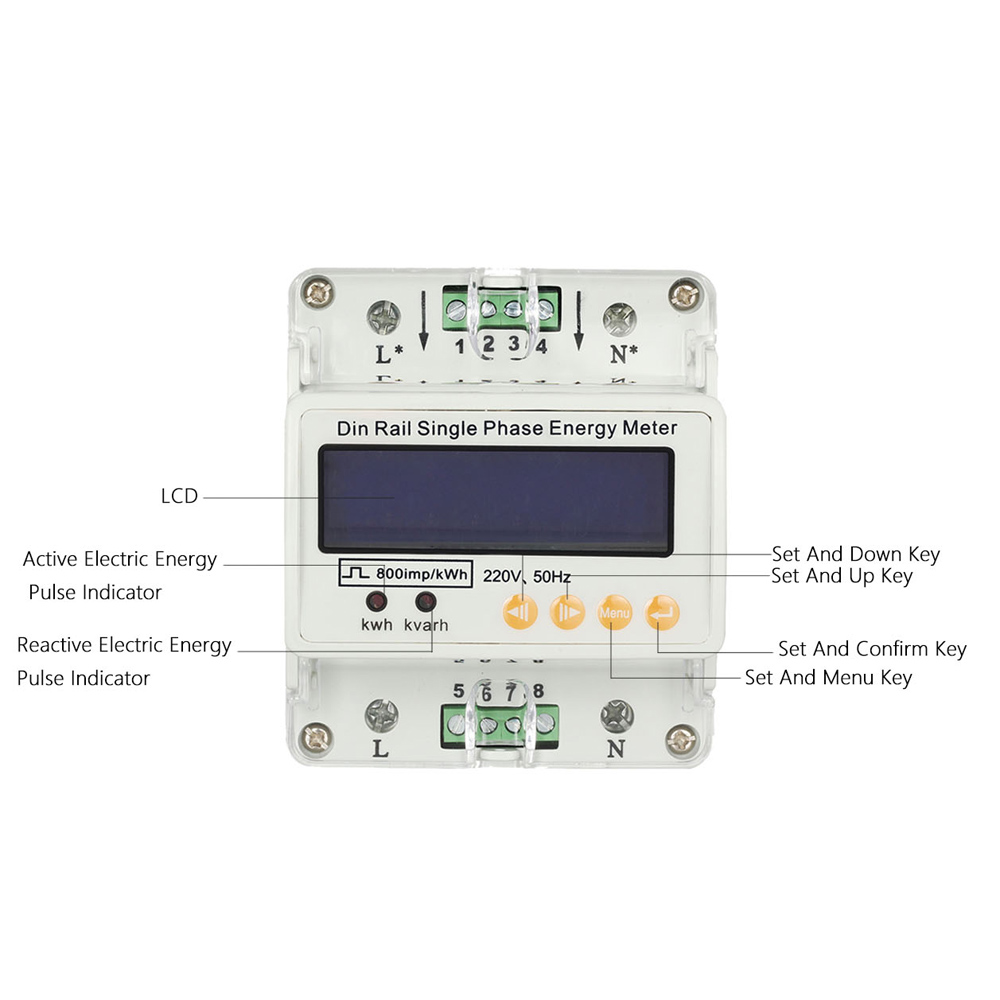

LCD display the time, date, KWH clearly, clock, rate period parameters can be set.

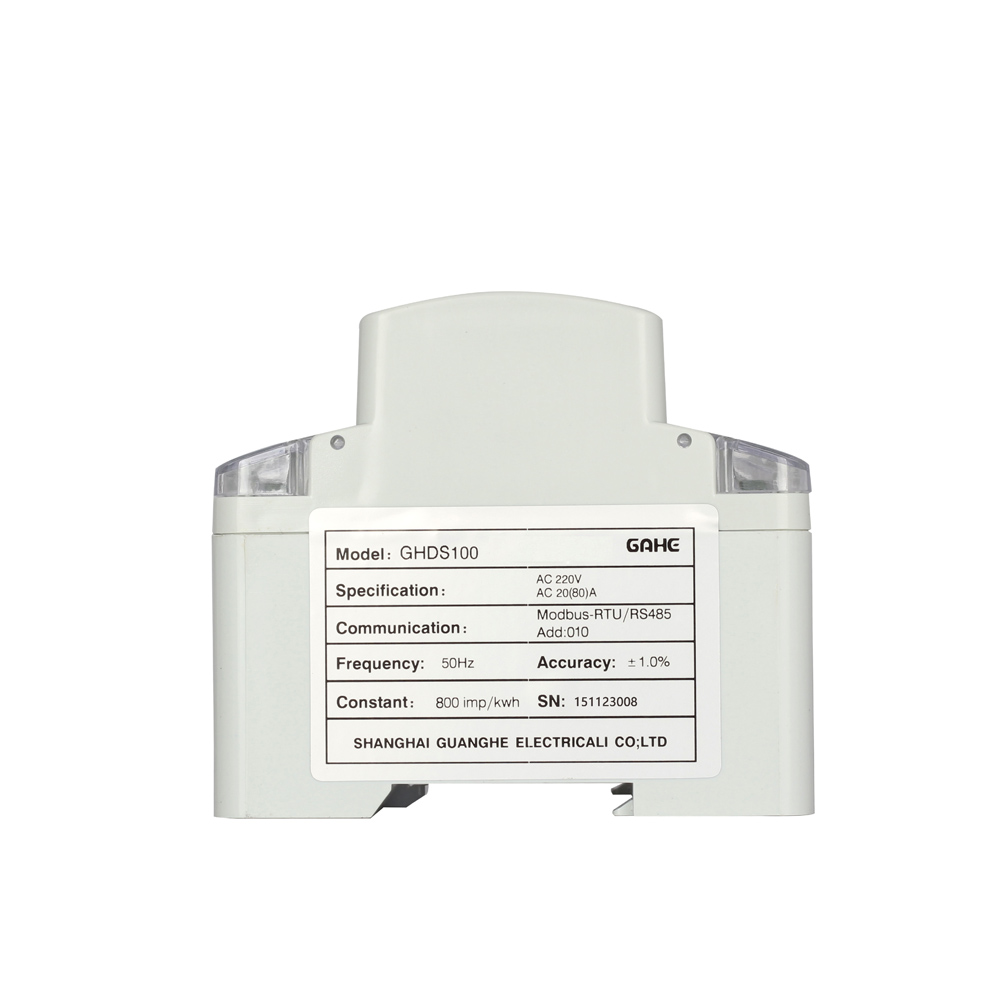

GHDS100E model can also display power parameters, such current, voltage, power factor, etc. (GHDS100 model can not).
With RS485 communication function(only GHDS100E).
For miniaturization structure, can be installed in the terminal power distribution box.
Applicable for building, shopping mall, exhibition center, schools, airports, ports and factories, etc.

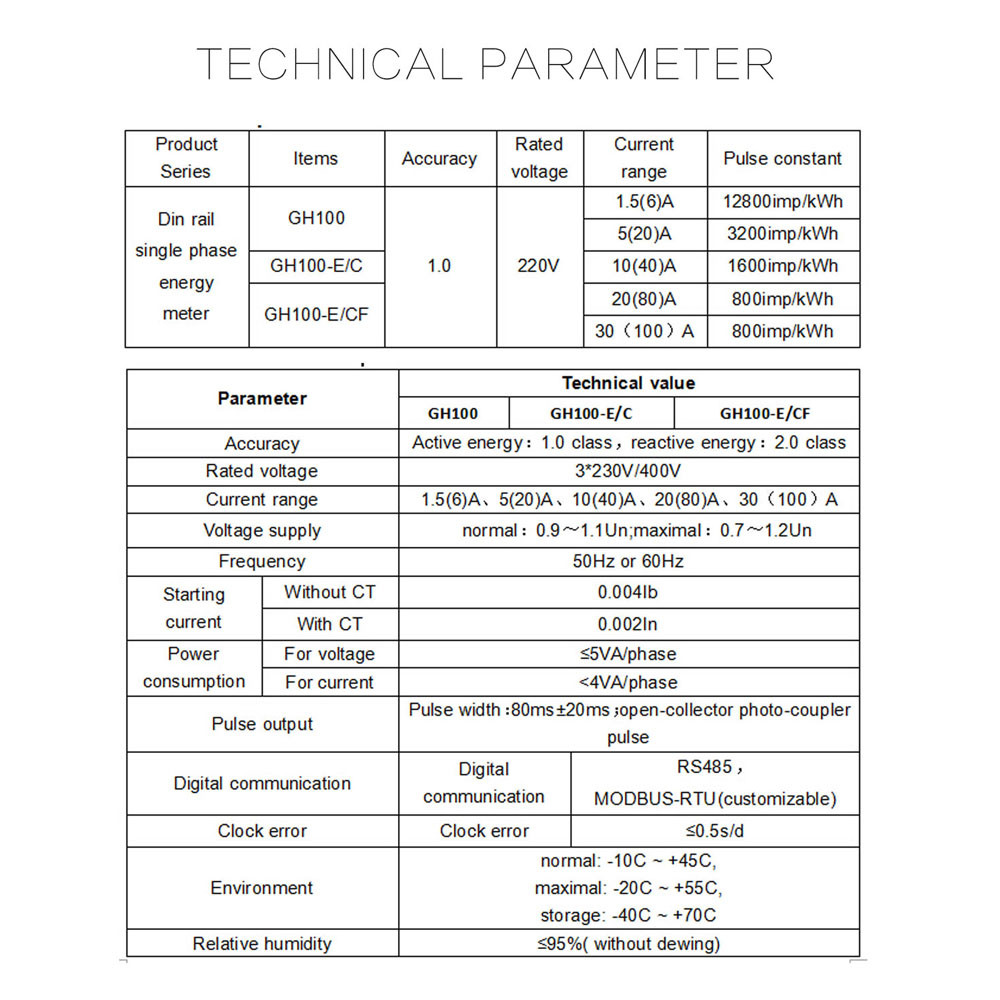

Specifications:
