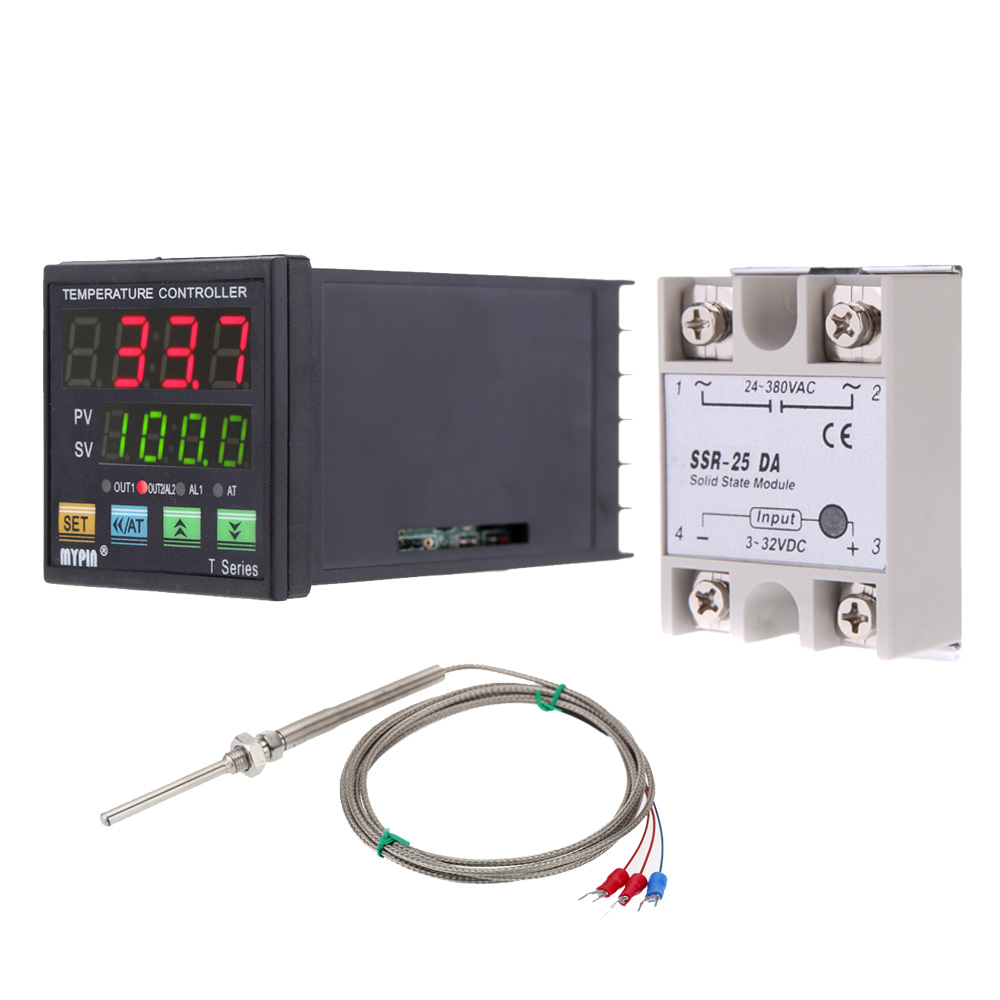

Mini Digital PID Temperature Controller Thermometer Heating Cooling Control+Solid State Relay Module+RTD Thermistor Sensor Probe

This is a dual display digital temperature controller that can be applied to automatic system of chemical industry, light industry, chemistry, machine, metallurgy(etc.) to control the temperature. The temperature range of RTD is -20~420°C.
Features:

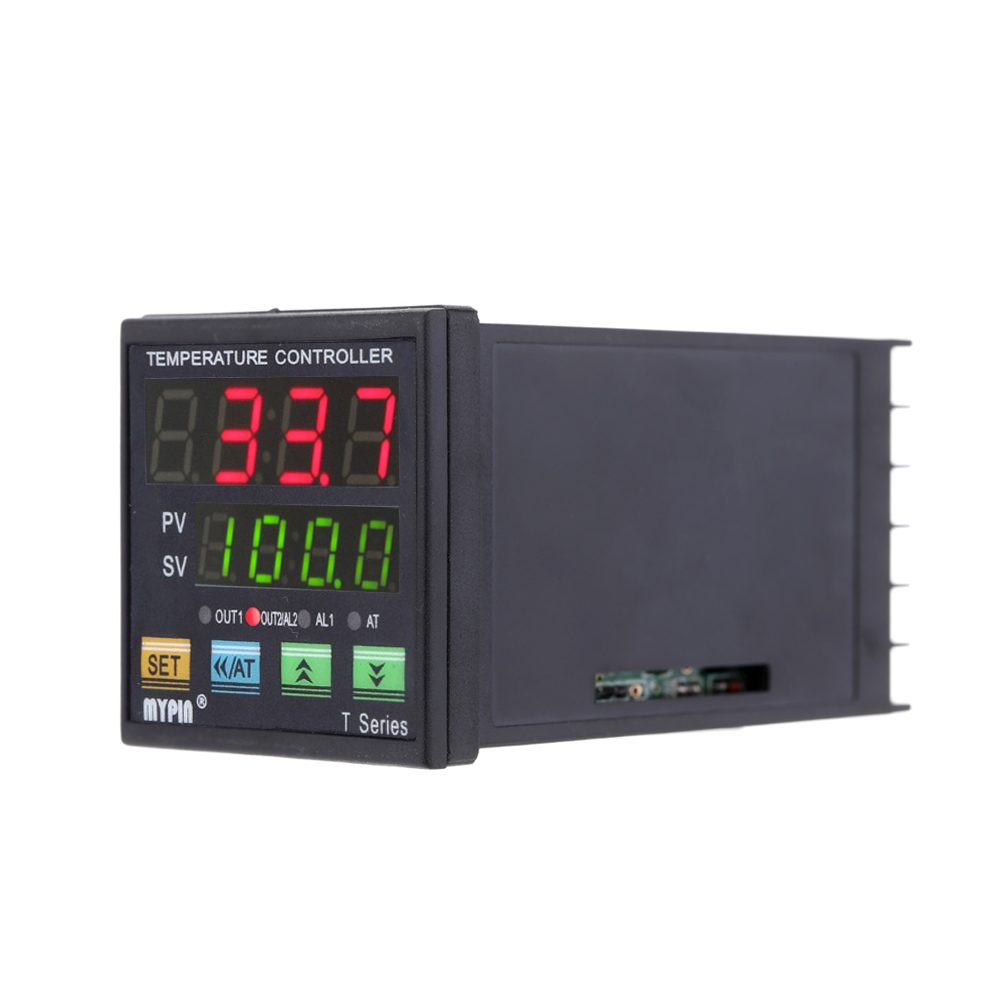

Temperature Controller:
Dual LED display, settable unit for Fahrenheit(°F) and Celsius(°C).
The temperature display range is -199~1800°C, accuracy: 0.3%F.S±2dgt.
Auto-tuning PID adjustment to choose for different applications or environments to be controlled.
Available for many TC or RTD input, precise, stable and simple for use.
Widely applied to automatic system of chemical industry, light industry, chemistry, machine, metallurgy(etc.) to control the temperature.
Note:
V: 0-10V DC S: SSR R: Relay
VSR model represents the main control is 0-10V output, with 2 alarms(SSR and RELAY).

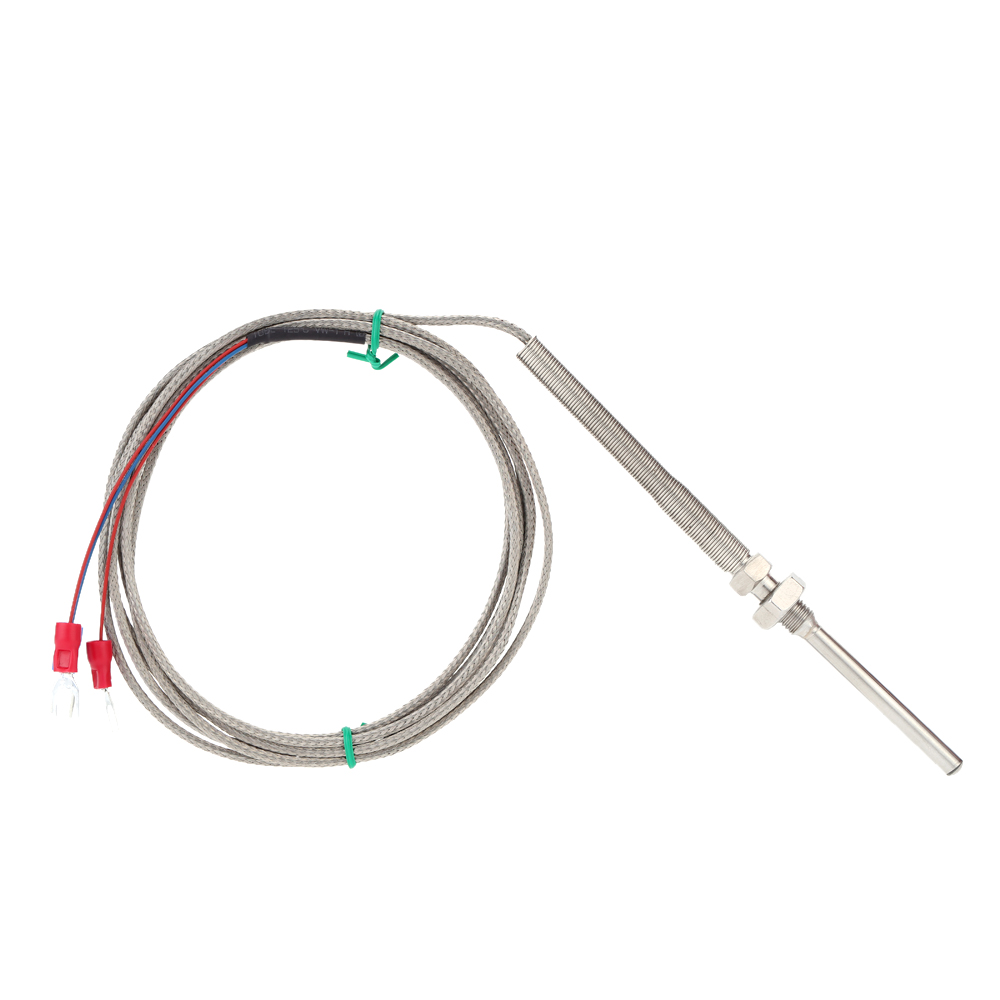

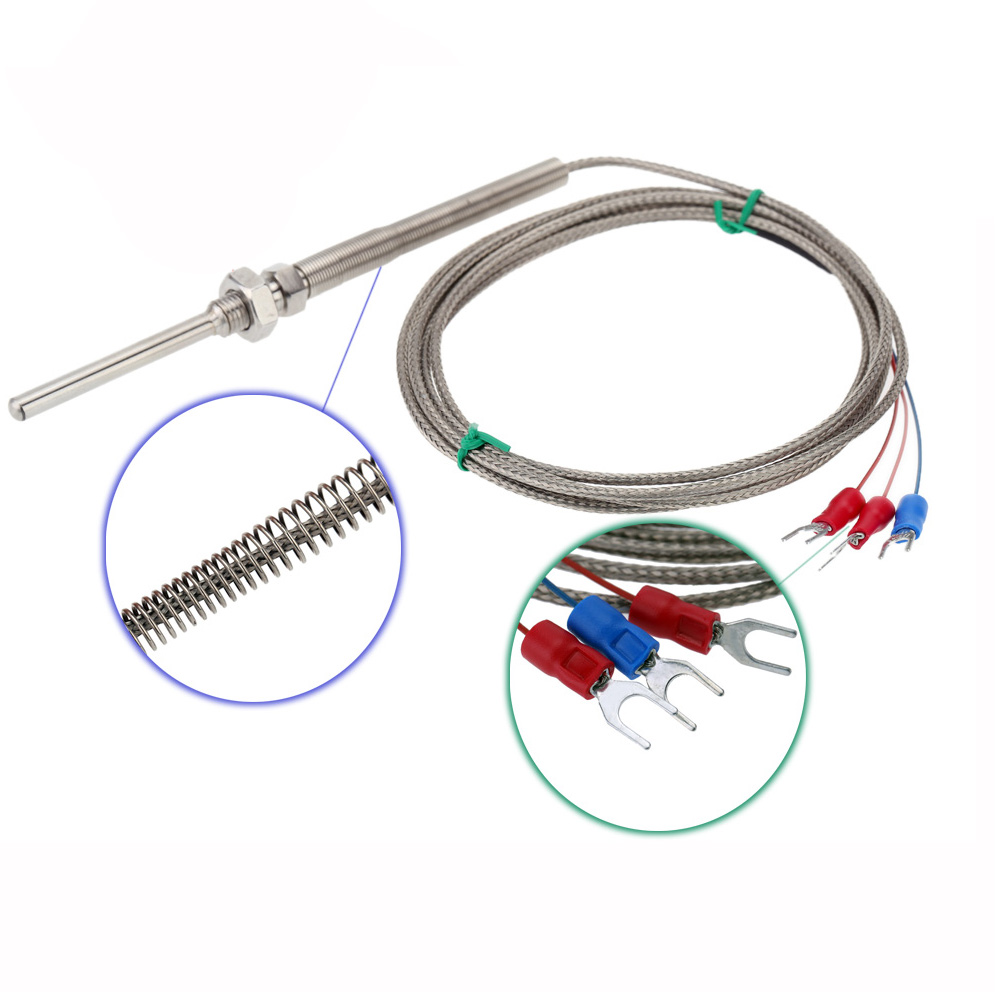

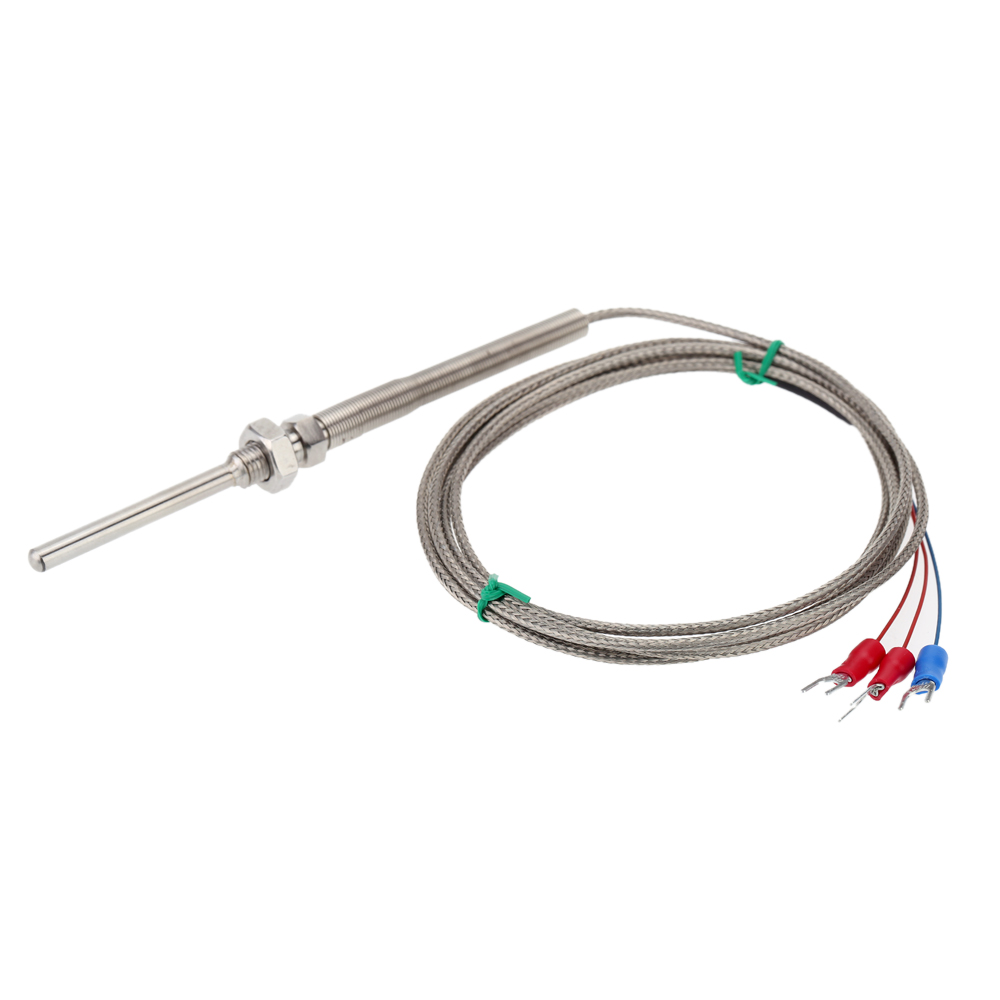

Thermistor Sensor Probe:
Made of stainless steel material, durable for use.
The sensor head, threading, and nut all seem pretty solid.
Temperature range is -20~420°C.
High precision and stable performance.
Suitable for using in machine room, cooling and heating equipment, etc.

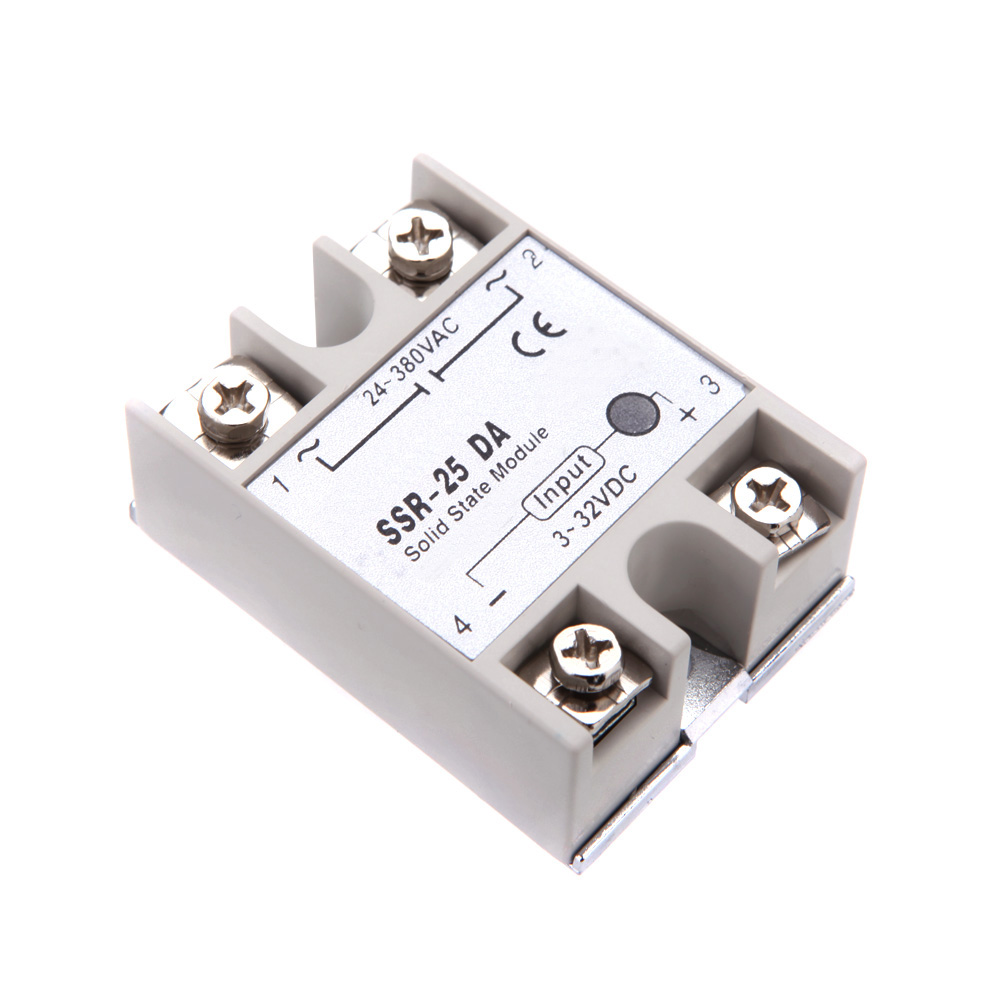

Solid State Relay:
25A Solid State Relay for PID Temperature Controller.
Long service life and high reliability.
Highly reliable, compact size designed to offer users maximum simplicity.
Fast switching.
Reduced electromagnetic interference.
Specifications:
Temperature Controller:

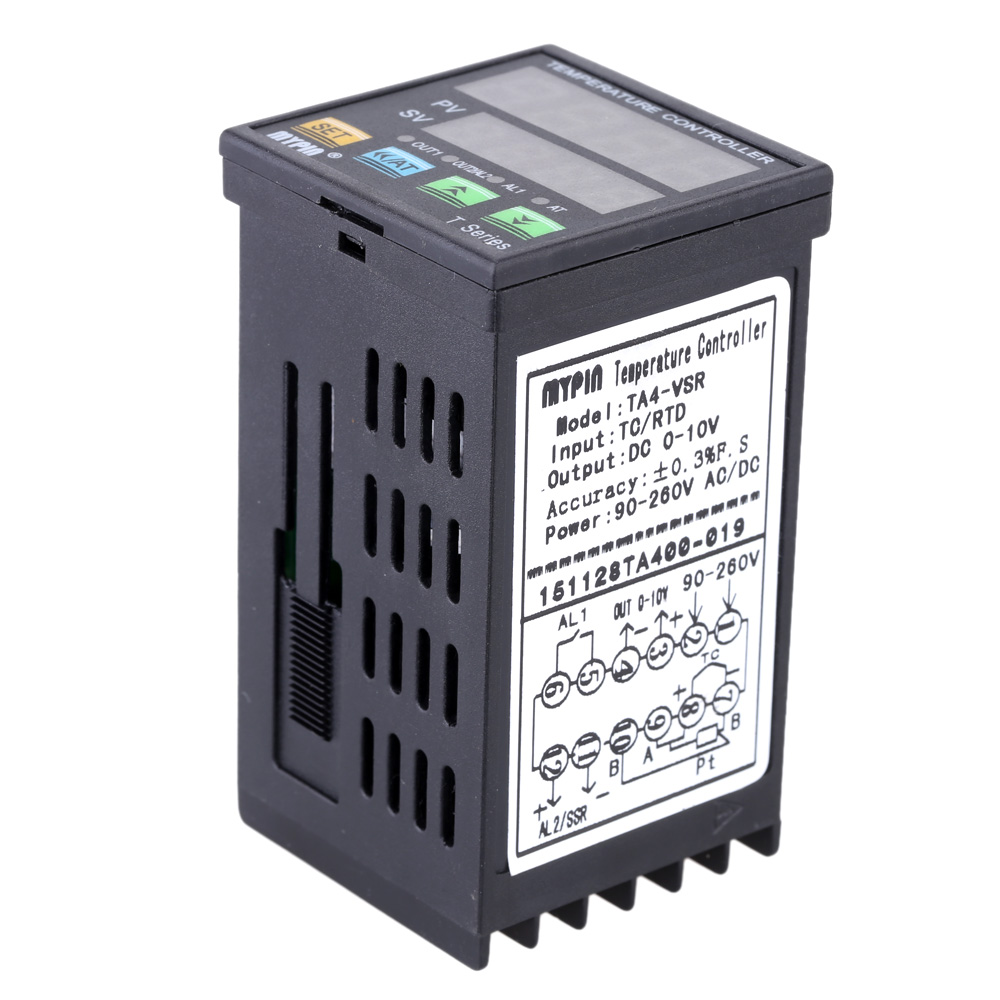

Model: TA4-VSR
Power Supply: 90-260V AC/DC 50/60Hz
Consumption: <=5VA
Display Range: -199~1800°C
Accuracy: 0.3%F.S±2dgt
Sampling Cycle: ≤300ms
Main Output: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1; SSR: 24V DC ±2V/ 20mA
Alarm: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1; SSR: 24V DC ±2V/ 30mA
Thermocouple Support: T/C(K,J,S,E) / Rt(Pt100,Cu50)
T/C Input: K: 0~1200°C; J: 0~1200°C; S: 0~1600°C; E: 0~1000°C
Rt Input: Pt100: -199~600°C Cu50: -50~150°C
Withstand Voltage Strength: 1500V Rms(Between Power Terminal and the Housing)
Installation Resistance: Min. 50MΩ(Between Power Terminal and the Housing)
Environment Temperature: 0~50°C
Storage Temperature: -10~60°C
Environment Humidity: 35~85%RH

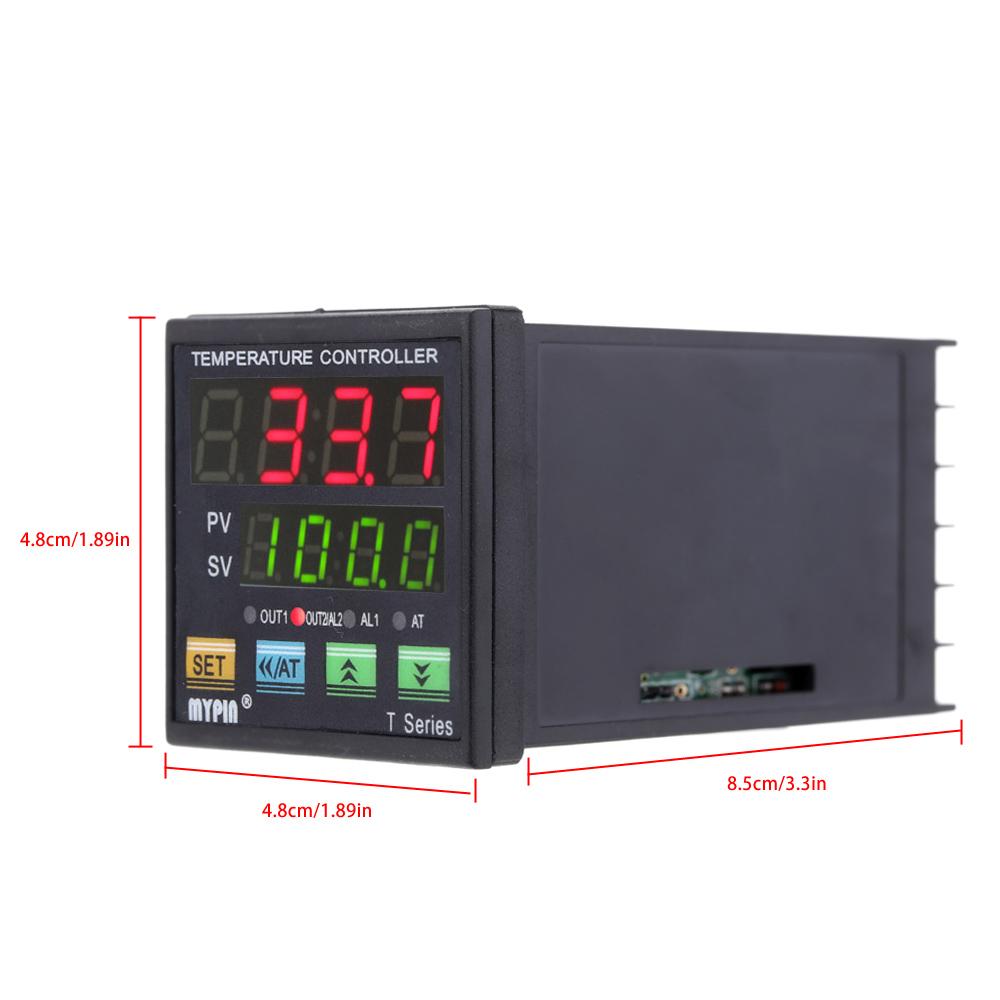

Item Size: 4.8 * 4.8 * 8.5cm / 1.89 * 1.89 * 3.35in
Item Weight: 115g / 4.1oz

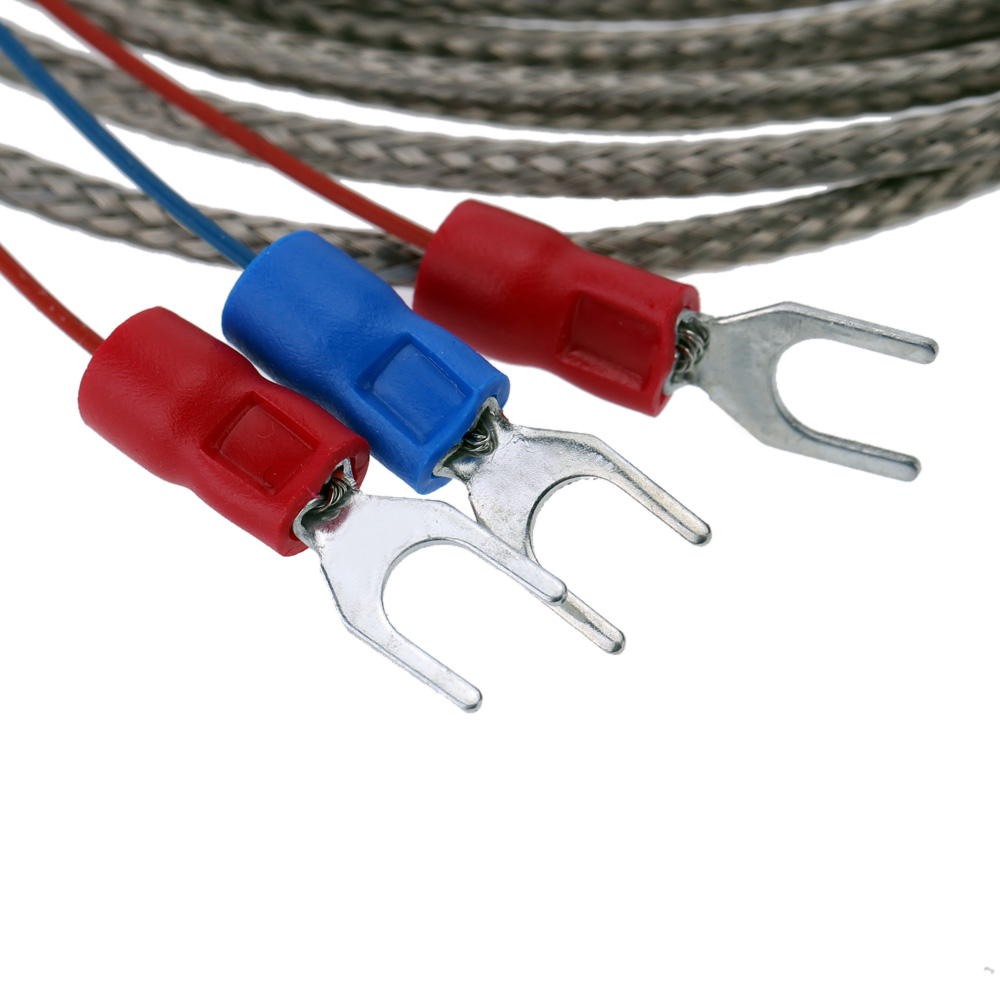

Thermistor Sensor Probe:
Material: Stainless Steel
Temperature Rang: -20~420°C
Element: Pt100(Platinumi)
Protection Tube Length: 5.2mm
Coil Spring: 50mm
Total Length: 2m / 6.56ft
Product Weight: 43g / 1.54oz

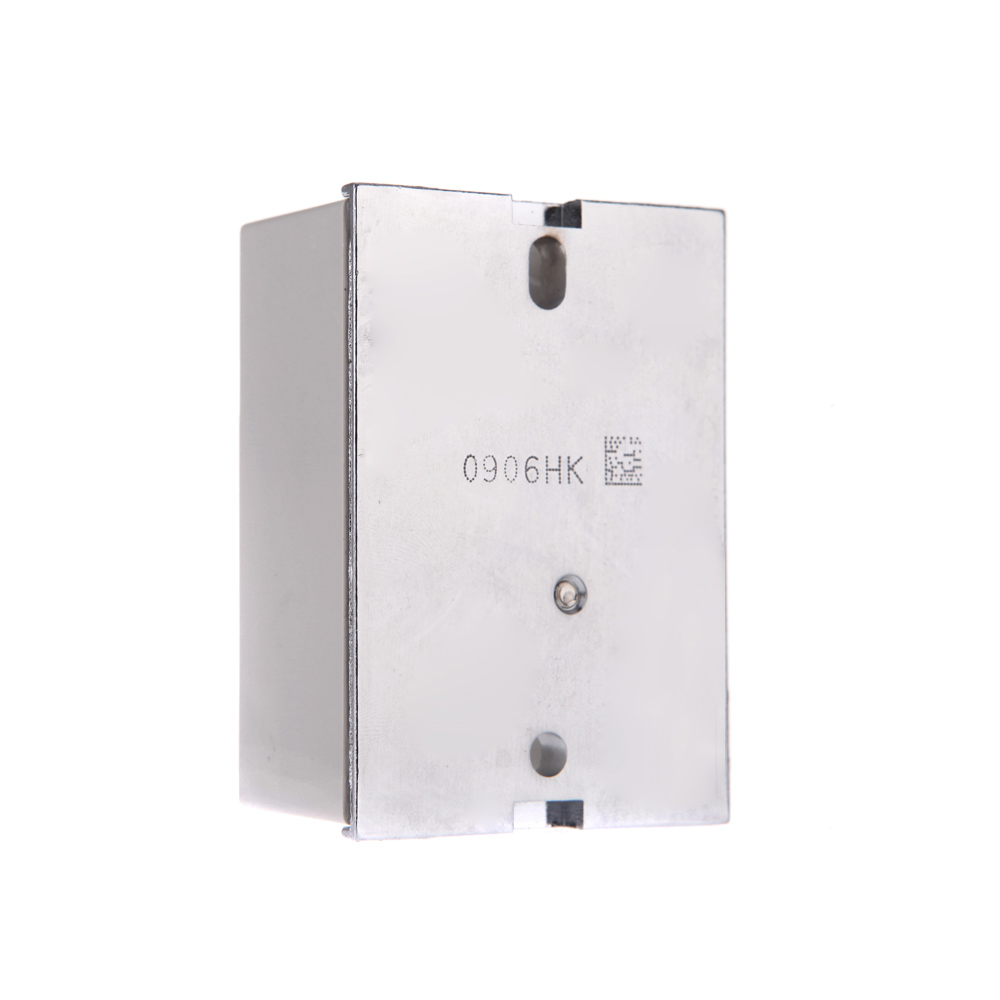

Solid State Relay:
Control mode: DC-AC
Loading current: 25A
Loading voltage: 24 - 380VAC
Control voltage: : 3 - 32VDC
Control current: 3-25MaDC
On voltage: ≤1V
One-off Time: ≤10ms
Off leakage Current: ≤2Ma
Dielectrics voltage-resistance: 2500VAC
Insulation resistance: 500MΩ/500VDC
Installation method: Bolt fixation
Environment temperature: -30 Degrees-+75 Degrees
Working indicator: LED
Color: White
Item size: 60 * 45 * 23mm / 2.4 * 1.8 * 0.9in
Net weight: 97g / 3.35oz
Package List:
1 * Temperature Controller
2 * Bracket
1 * User Manual(English)
1 * PT100 Thermistor Sensor Probe
1 * SSR-25 DA Solid State Relay for PID Temperature Controller
