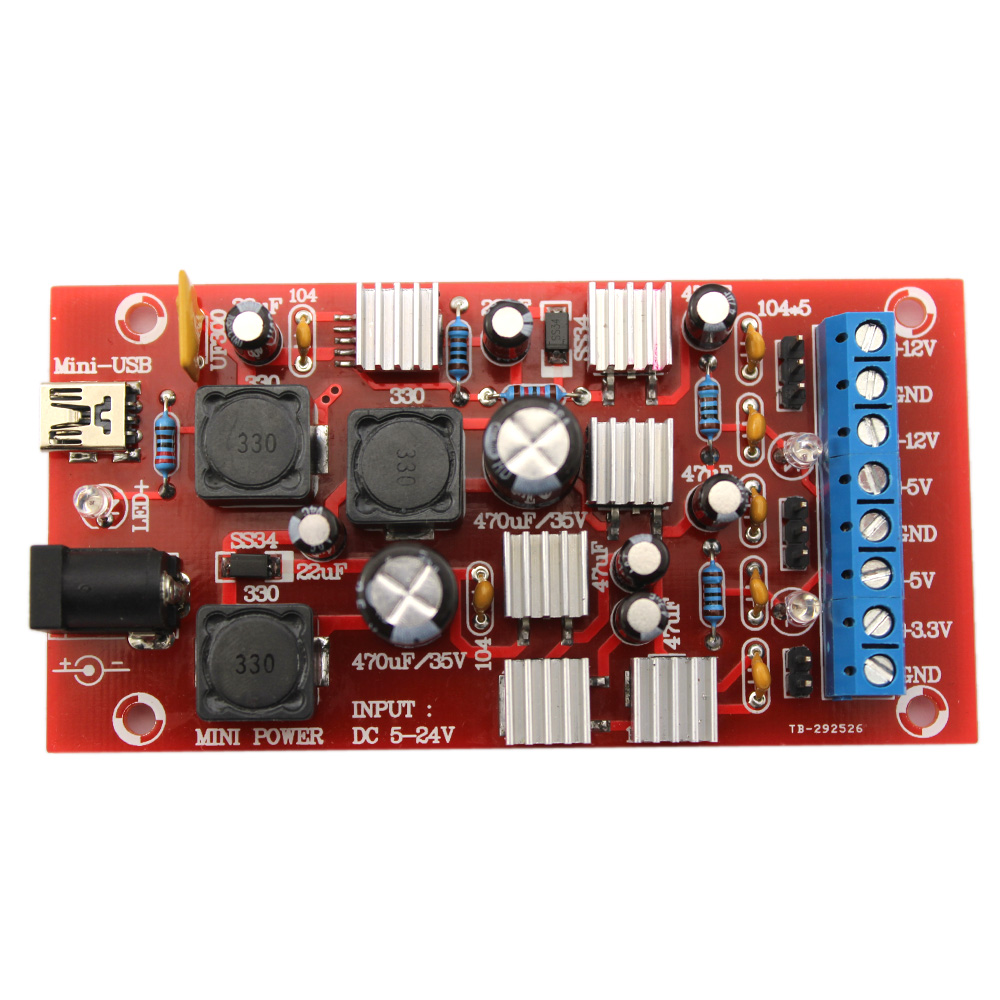

New Arrival DIY Power Supply Module USB Boost Single Turn Dual Linear Regulated Power Kit Regulator Multiple Output Power Kit

This circuit has a wide range of single power supply input(5-24V, if the output current is small, use 3.7V lithium batteries as input can also provide normal output), then convert to multiple positive and negative regulated output converter. It's suitable for most of electronic required test.
Features:
Mini in size, convenient for use.
Single wide range input voltage: 5-24V DC.
With mini USB interface, the input with current limiting protection.
Multi-channel linear regulated voltage dual output.
Can meet most of experiments needs.
Note:
1. According to the output power requirements, please select input power with a sufficient output current, or it may not start. Output power = output voltage from various quarters * total output current, input power should be at least> Output power /0.9. For example, a standard power supply 5V, 1A, and to power the unit, it can provide up to about 4.5W of output power.

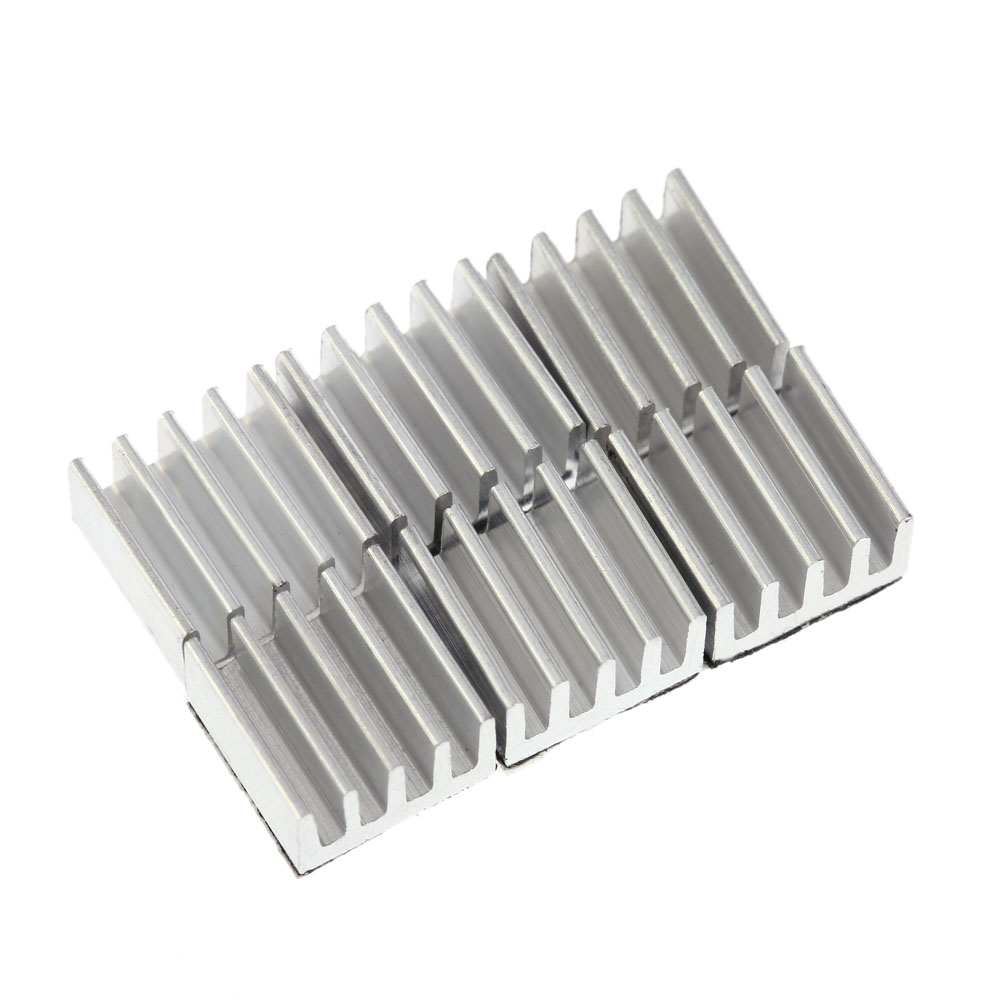

2. The total output power of machine should not exceed 10W, when single output, can provide short-term high current, but this time must pay attention to the heat sink temperature, not too high so as not to damage the IC. If you do not have experience, please control the output current of each channel to less than 0.2A. Excessively large output current may cause damage to the IC overheat.
3. Each output of the IC have protection, but please avoid a short circuit, all output wiring connections should be completed and then turn on the power.
Specifications:
Input Voltage: 5-24V DC
Output Voltage: + 12V, -12V, + 5V, -5V , +3.3V.
Output Current: 300mA (per channel)

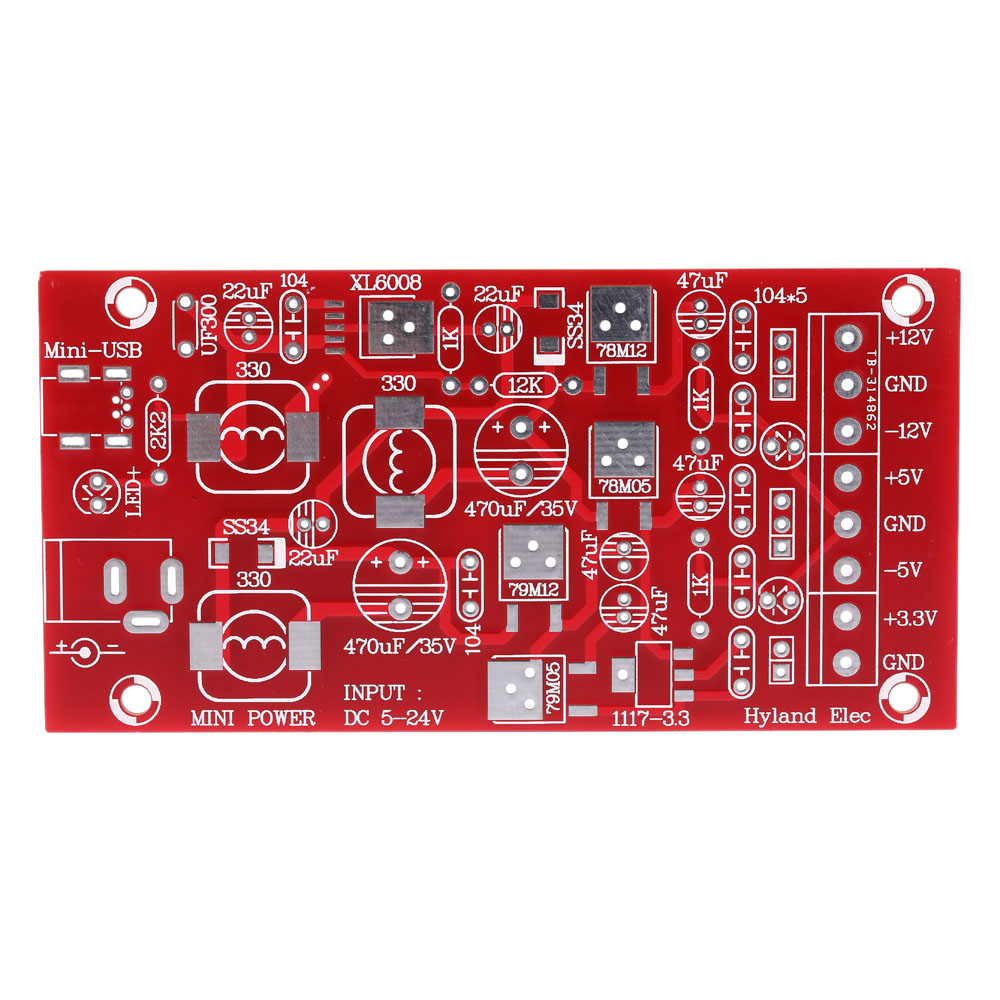

PCB Board Size: 98 * 50mm
Package Size: Approx. 11 * 8.5 * 1cm
Package Weight: 55g / 1.96oz

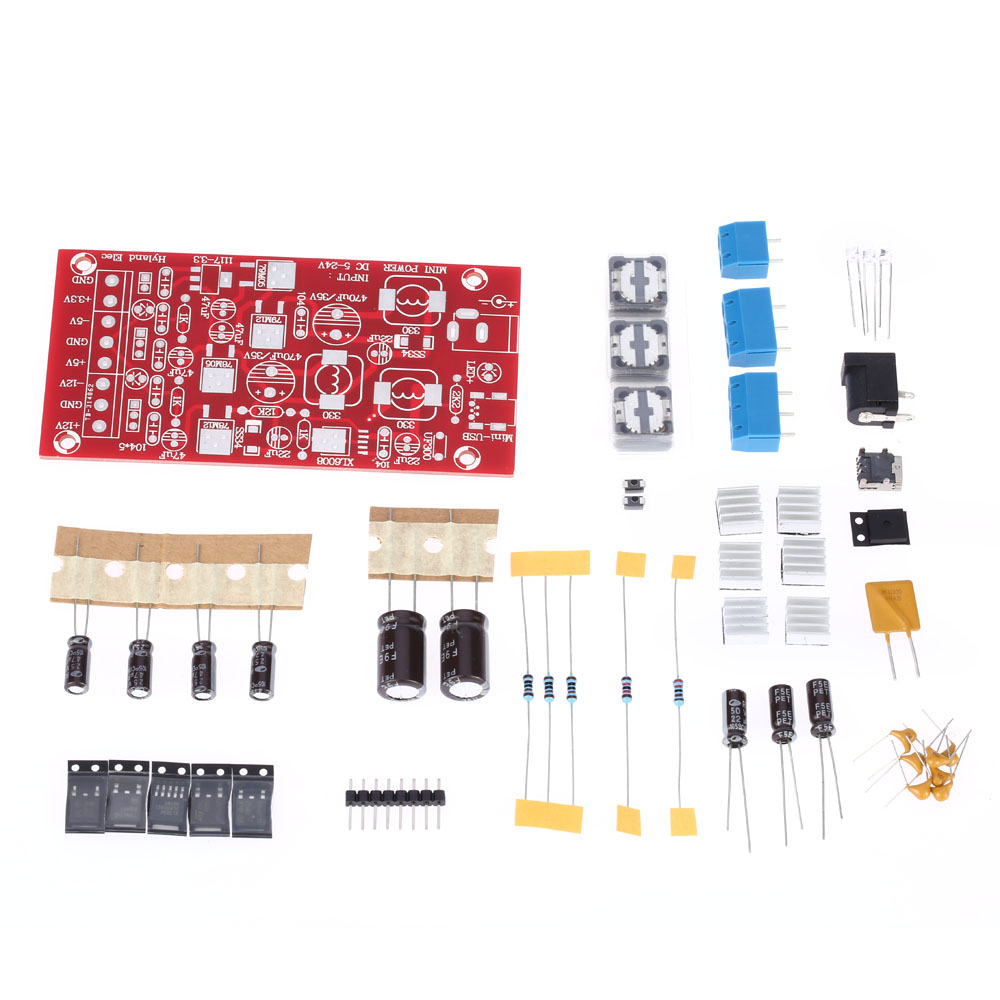

Package List:

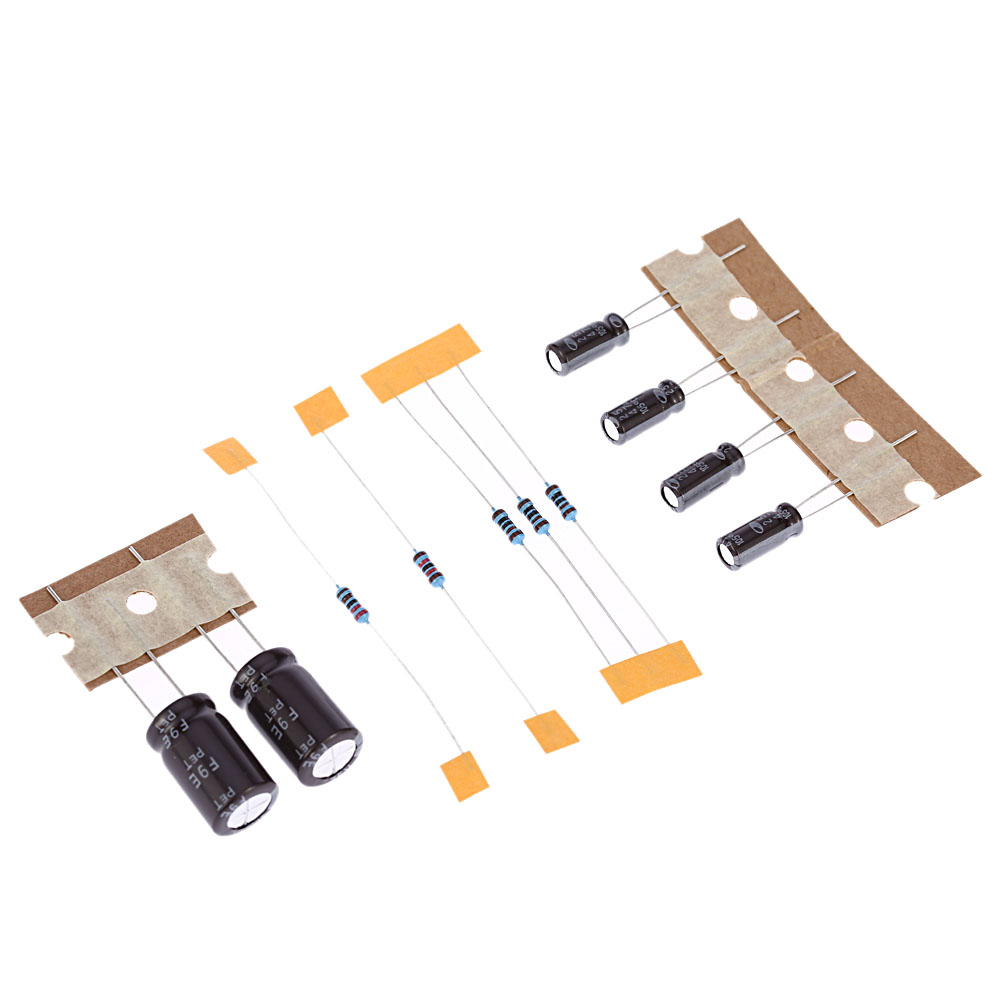

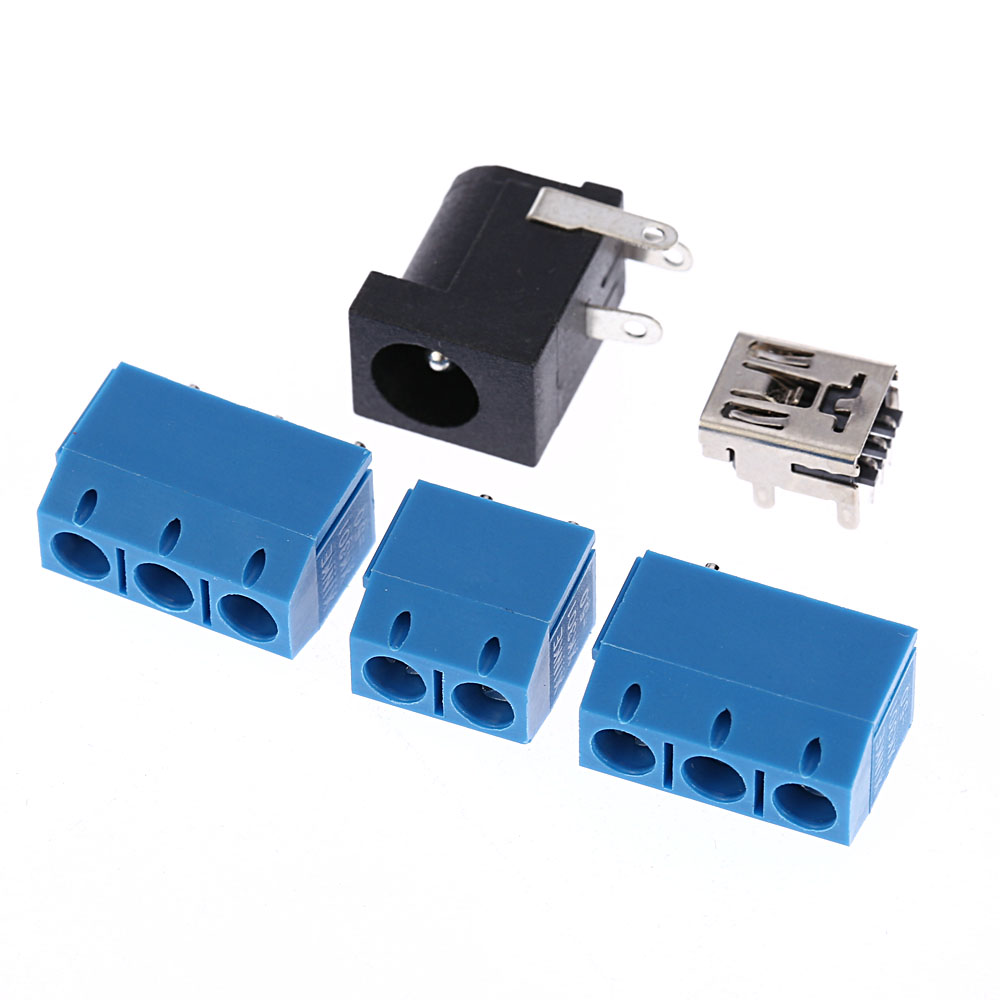

1 * Linear Regulated Power Supply DIY Kit
