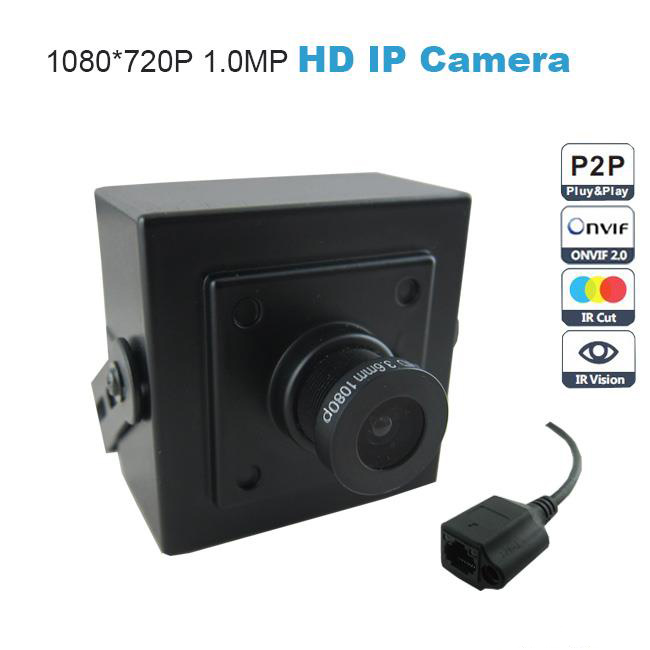

Onvif 1.0 Mega pixels Mini IP Camera 25 fps 720P Security HD Network CMOS Sensor Camera 3.6mm  Support Phone Android IOS P2P Hot

1. This module uses Huawei Hass Hi3518E + OV9712 (38 or 32) as the core,High Resolutiion 1.0 Megapixel 1/4" CMOS Sensor

2. 1280*720P Resolution 25fps real time.

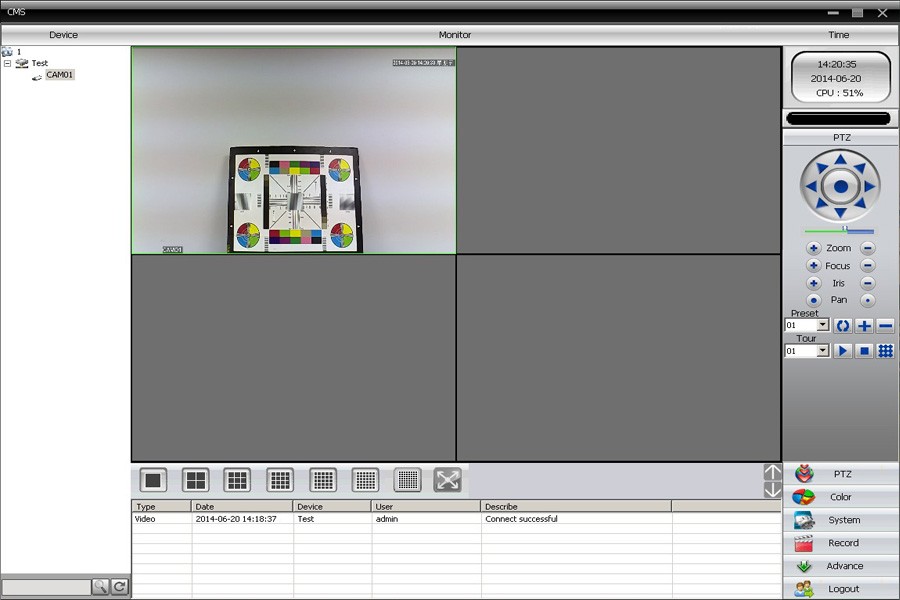

3. Using XM CMS client, Supports P2P Cloud, does not need to open router ports without port mapping, Easy remote access.

4.H.264 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system

5.Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on

6. Support sending email, attaching picture;Alarm picture and record Uploaded to FTP server,Timing captured picture to FTP server

7.Support Static IP and DHCP

8. Support IE, Firefox,Google browser

9. Supports mobile phone remote access easily, AS: iPhone, Android, Windows, Symbian, Windows Mobile,BlackBerry.

10.Support for international Onvif agreement, compatible XM,Hikvision, Dahua and other well-known manufacturers of NVR.

11.Support Onvif2.3.

12. Built in IR-CUT Filter

Model NO.                                                             50-NX4C1008A

Camera

Image Device                                                       1/4"High Sensitivity CMOS

Image senser                                                       OV 9712

DSP                                                                       Hi3518E

TV System                                                             PAL/NTSC

Effective Pixels                                                     1280(H) x 720(V)

Min. Illumination                                                   0.1Lux

Day/Night                                                              ICR

Lens

Focal Length                                                       (Default:3.6mm)6mm/8mm Optional

Compression

Video compression                                            H.264 Main Profile/JPEG capture

Video Bite Rate                                                 100Kbps~6Mbps


Max Resolution                                                  1280(H) x 720(V)

Frame Rate                                                          PAL50Hz:25fps (1280*720);NTSC60Hz:30fps (1280*720);

Image settings                                                     Saturation, Brightness, Contrast adjustable through Client software or web server

Network Function

Storage                                                                Network storage

Intelliget Alarm                                                    Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error

Protocol                                                                TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP

(HTTPS,SIP ,802.1x,IPv6 optional)

Basic                                                                     Anti-flicker, dual stream, heartbeat, password protection

Interface

Communication Interface                                   1 RJ45 10M/100M self-adaptive Ethernet interface

Video output                                                        1Vp-p Composite Output(75/BNC)

General

Operating condition                                             -10 ~60 ,humidity 90% less (non-condensing)

Power supply                                                         DC12V±10%

Current                                                                    <200mA

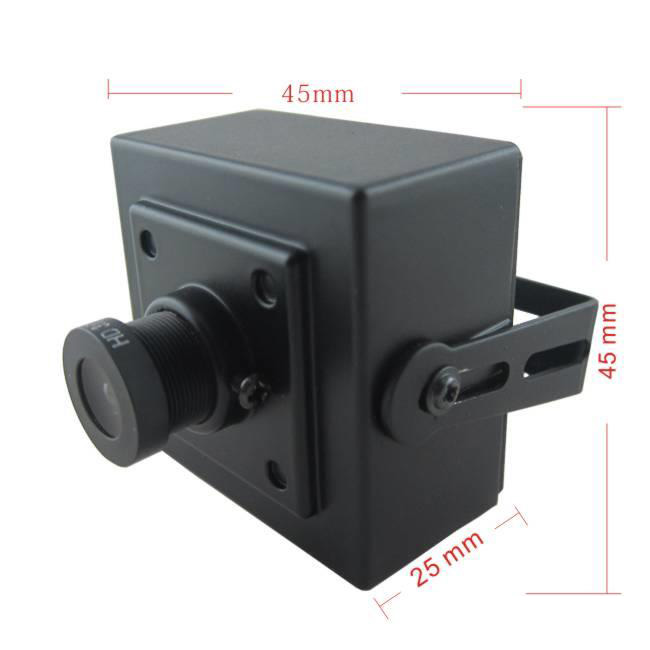

Dimensions                                                          100*100*90mm

Net Weight                                                           300g/pcs

1 x Mini 720P IP Camera

 1 x User Manual

1 x CD

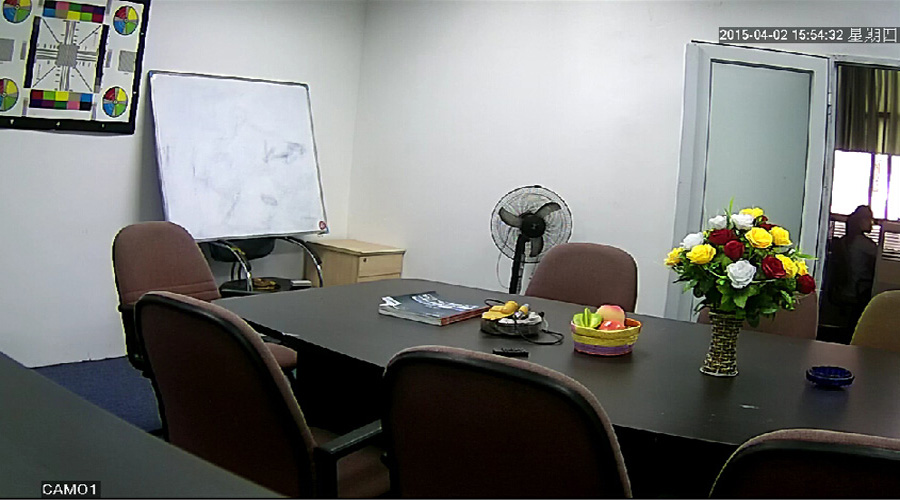

Indoor picture

outdoor picture

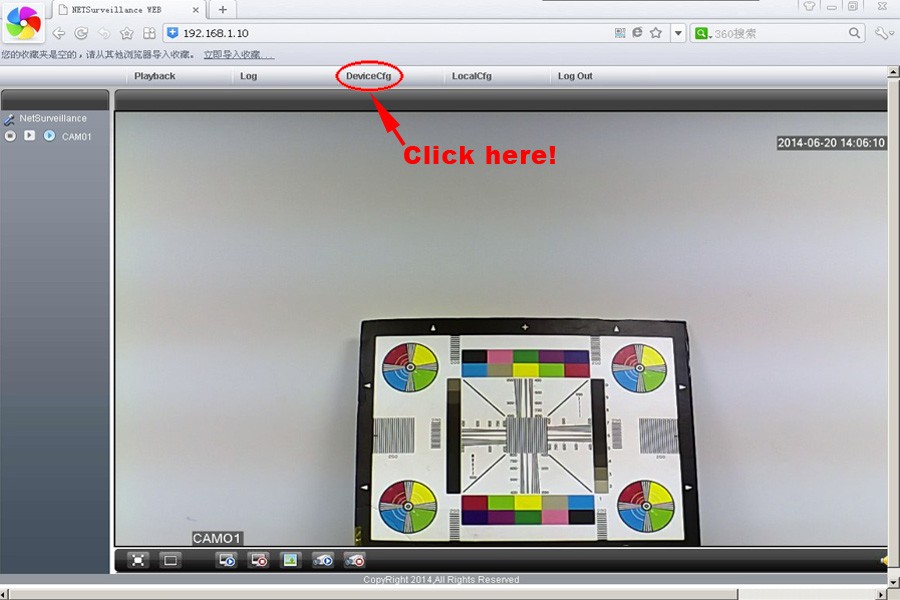

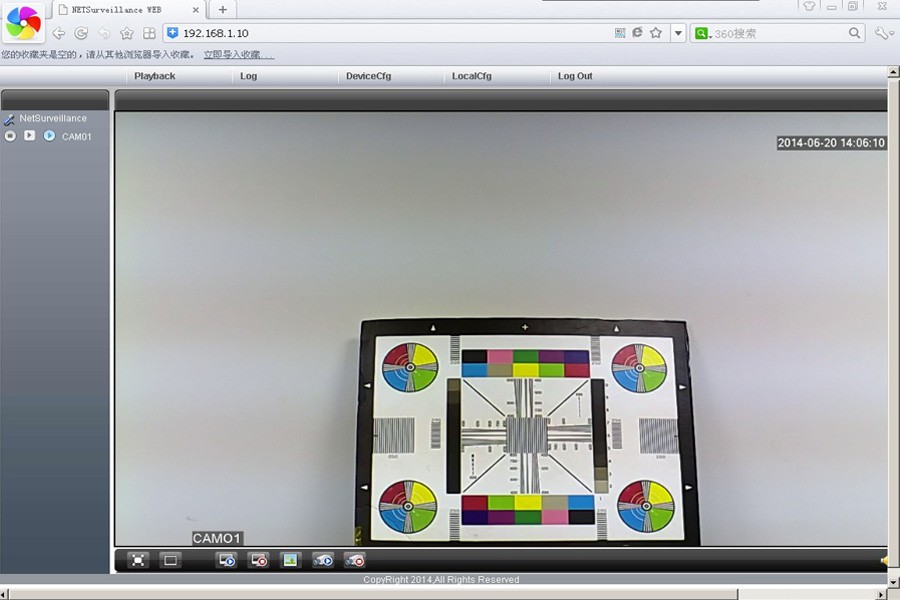

The Standard IP is:192.168.1.10

User name:amdin

Password: None

Remind: If you use the software first time, you need to install a plugin.

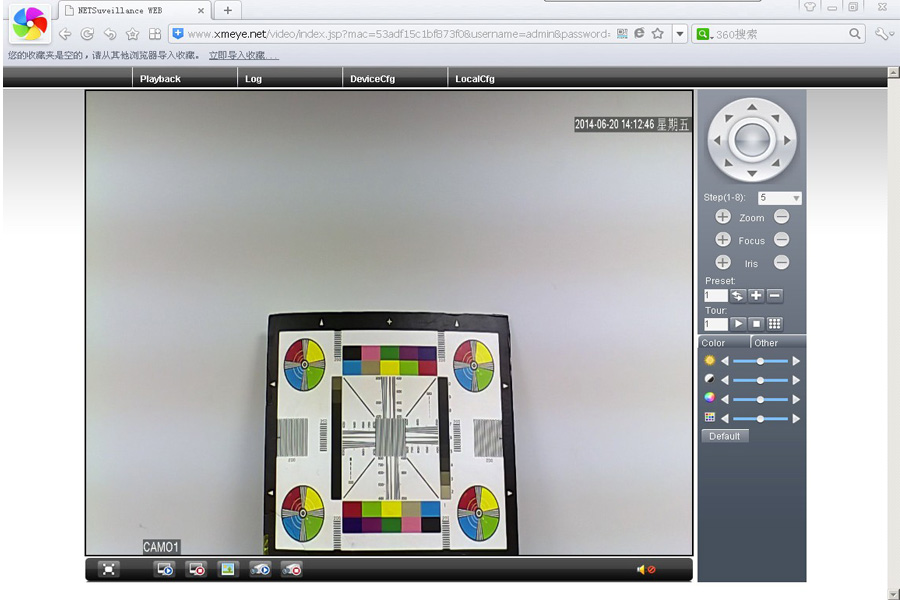

P2P on the browser

www. xmeye. net

If you log in first time,you need to register an account freely.

1.   Android System Installation(Two ways)

(1) Android user can install directly.The APP is in the CD.

Install the app "XMEye"

(2) Please visit www.xmeye.net,Then use your smartphone toscan this image.

Then complete the download and installation.

2. Iphone user can download app on Apple Store.

How to use?

If you have the account already,you can view directly.

If you login first time,you also need to register.
